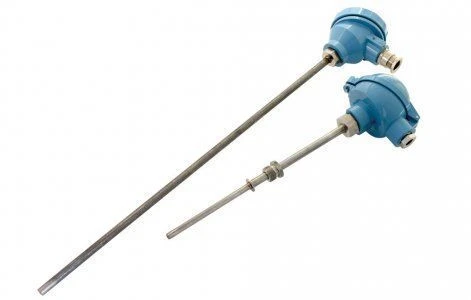

Resistance thermocouple EnI-300 TSM

Temperature Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Resistance thermocouples are used to measure the temperature of:
-liquid, gaseous, loose media, dispersed media and suspensions without particle adhesion, as well as aggressive media that do not destroy the protective body and the material of the protective fitting;
- surfaces of solid bodies and bearings.
In versions with a measuring transducer, the signal from the sensing element is converted into a unified DC output signal (0-5mA, 4-20mA) or into a digital output signal via HART protocol (4...20mA/HART)..

Specifications

Type of climatic version UHL3.1 or U1.1 according to GOST 15150-69

Material of protective armature 12?18?10?; 10?17?13?2?; AISI 321; AISI 316; Brass ??-59-1; Brass ?63

Degree of protection IP55; IP66

Type 50M; 100M; 2x50M; 2x100M

Unit designation ENI-300 TSM

Material of protective armature 12?18?10?; 10?17?13?2?; AISI 321; AISI 316; Brass ??-59-1; Brass ?63

Degree of protection IP55; IP66

Type 50M; 100M; 2x50M; 2x100M

Unit designation ENI-300 TSM

Tolerance class A; B; C

Joining the process Without connecting element; M8x1; M12x1,5; M16x1,5; M20x1,5; M24x1,5; M27x2; M33x2; G1; G1/2; G3/4; 1/2NPT,(K1/2); 3/4NPT,(K3/4); special version

Output signal 50M; 100M; 2x50M; 2x100M; TS with analogue IC with DC output signal 4-20 or 0-5 mA; TS with microprocessor IC with DC output signal 4-20 mA; TS with IC with 4-20 mA/HART output signal

Type of explosion protection General industrial; 1Ex d IIC T6 Gb X; 1Ex d IIC T5 Gb X; 1Ex d IIC T4 Gb X; 0 Ex ia IIC T6 Gb X; 0 Ex ia IIC T5 Gb X; 0 Ex ia IIC T4 Gb X

Measuring limit, max 200 °C

Measuring limit, min -50 °C

Length of immersion part 25...4000 mm

Measuring limit, max 200 °C

Measuring limit, min -50 °C

Length of immersion part 25...4000 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
