Relay Module REM2-XR 24DC for Efficient Control Applications

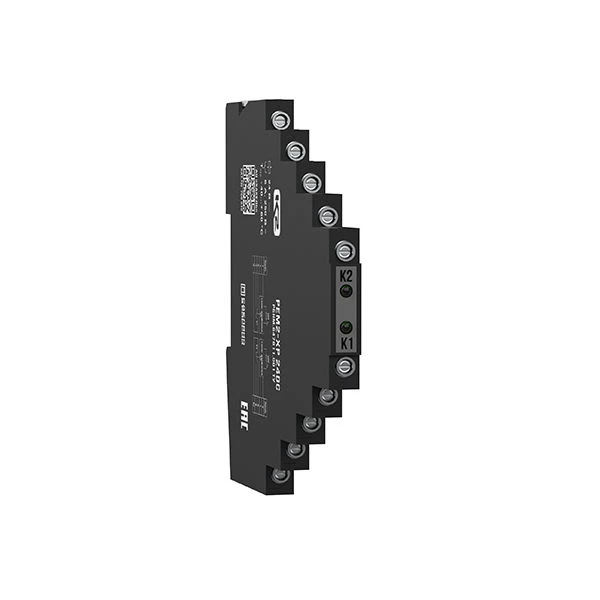

Relay module REM2-XP 24DC, RBNM.647611.001TU is two independent switching relays with protection of the control winding and LED indication of the presence of control voltage (switched state). The input and outputs of the module are galvanically isolated. The module allows switching at a maximum switching circuit voltage of 250 V AC.

The maximum continuous load current is at least 6 A. Rated control voltage is 24 V DC. The device is made in a plastic housing of protection class IP20.

The device is mounted on a 35 mm DIN-rail by means of a special latch on the rear side of the case.
