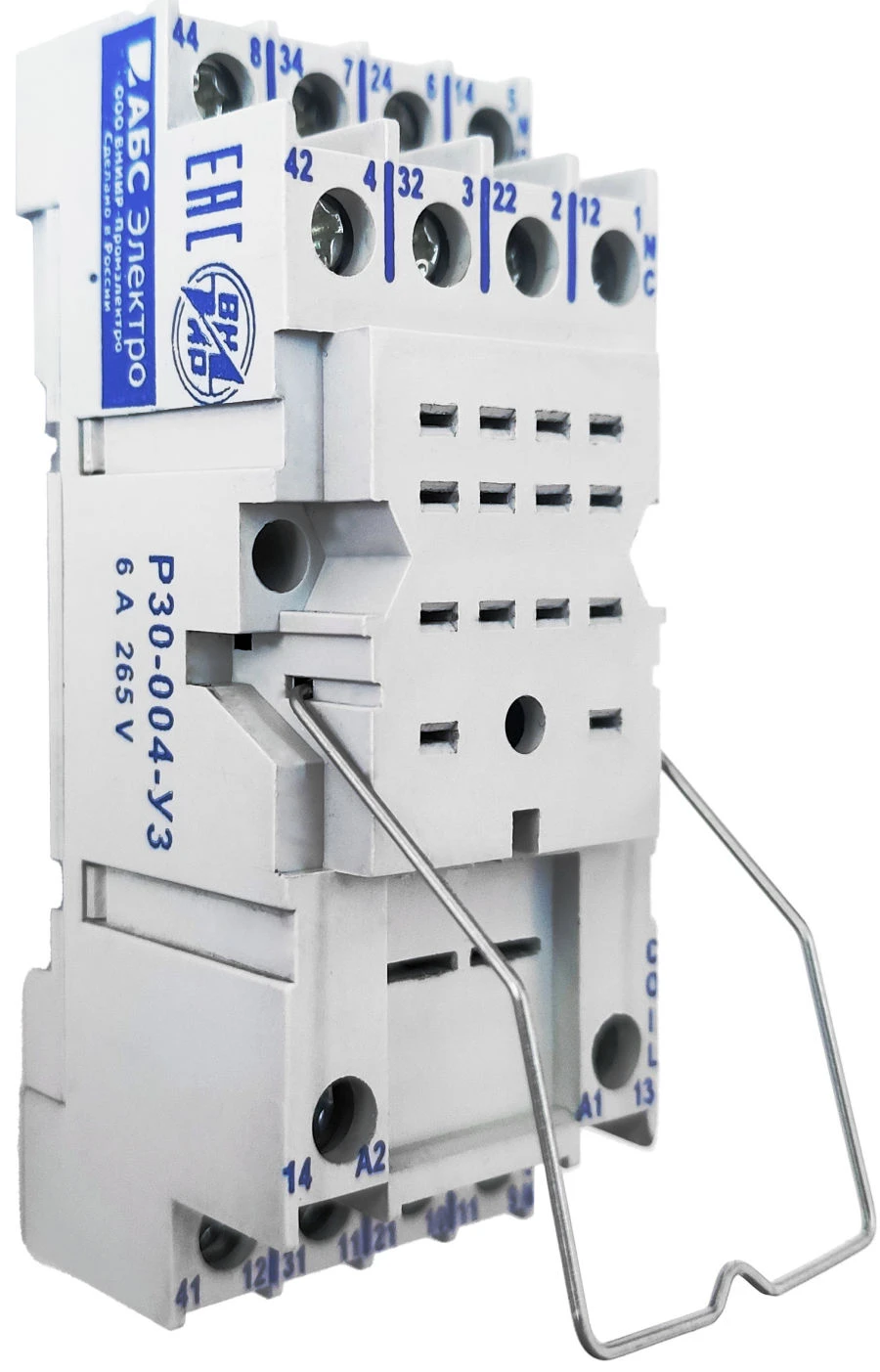

R30 Socket for RP30 Relay Series - Connect Your M30 Modules Efficiently

Intermediate Control Relays

Manufacturer: VNIIP-PROMELECTRO LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

P30 socket is designed for installation of intermediate relays of RP30 series and provides serial or parallel connection of modules of M30, M30H and M30-VX series, as well as connection of external conductors. The module and the intermediate relay are installed on the socket and represent a single structure of the relay modular RP30 or RP30-VX, depending on the types of modules installed. Can be part of the product "Relay intermediate modular series RP30" as a separate module.

Conforms to technical conditions GLCI.647115.066 TU and requirements of ?? ?? 004/2011 and 020/2011.

Specifications

Climatic version

U3, T3

Design according to contact combination "p" - switching "h" - closing "p" - breaking

2 "p" (RP30-002)

Connection type of external conductors

Terminals with captive screws

Rated voltage / maximum switched voltage, V

AVS 240 / 265

Rated current, A

6 A

Electrical insulation strength

Between coil and relay contacts - 2500 V

Possibility of module installation

Got it

Weight of the socket, kg, not more

0,07
