Available for Import

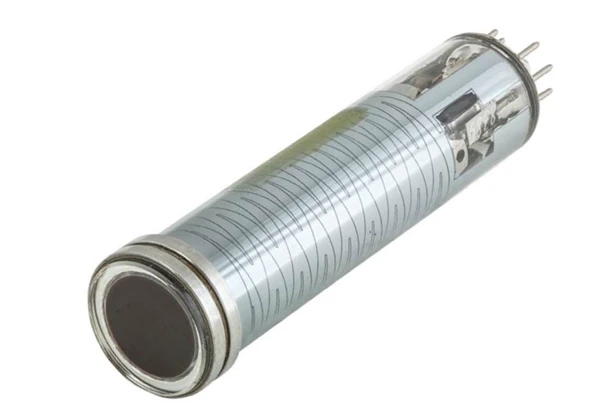

Radiation-proof vidicon LI501-1MK

Microwave Tubes & Amplifiers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

television cameras for special purposes in conditions of increased radiation up to 5-107 Rad

Technical Specifications

Weight	0.018 kg
Filament voltage	6.3 V
Filament current	80...115 A
Target working surface size	6.6.?8.8 mm
Length	Flat grinder, Specialised grinder mm
Diameter	17.8 mm
Diameter of contact rings	19.6 mm
Anode voltage	250 V
Ready time	30
Warranty runtime	1000
Unevenness of dark background	15 %
Geometrical distortions	2.5 %
Maximum illuminance of the target, lx	4
Exposure dose rate, Rad/h	100000
Capacitance between the signal plate and other electrodes connected together, pF	3.5
Inertia of signal current decay 40 ms after lights out	14 %
Modulation depth at 400 TVL in the centre	55 %
Angle resolution, TVL	550
Resolution in centre, TVL	600
Voltage at deflectron electrodes, DC	220 V
Voltage on the grid	340 V
Voltage on the signal plate	10...25 V
Modulator operating voltage	0...15 V
Modulator voltage, locking (negative)	20 V
Nominal target illuminance, lx	1
Signal current, µA	0.15
Dark current, µA	0.003

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
