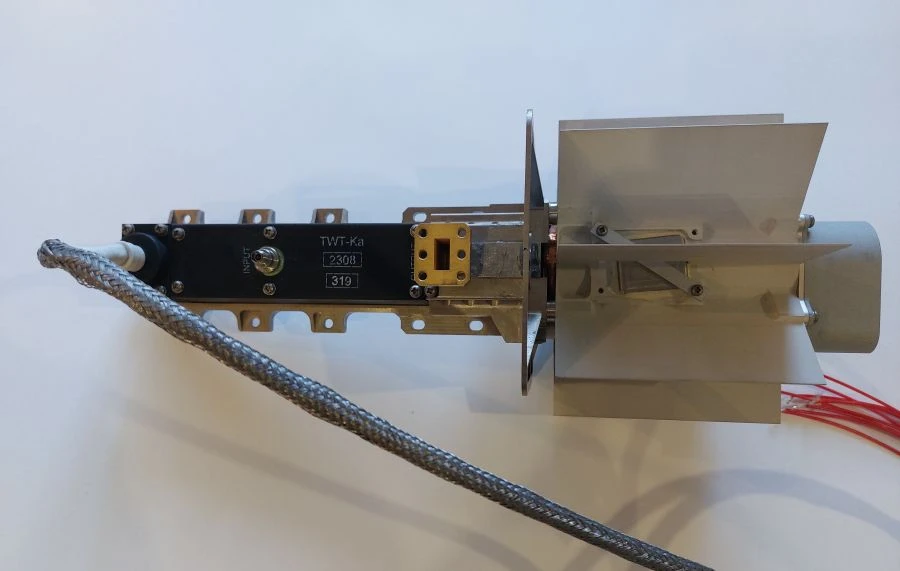

Travelling wave lamp TWT-Ka

Microwave Tubes & Amplifiers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Travelling wave lamp TWT-Ka-1 Travelling wave lamp TWT-Ka-2

Description

A continuous running wave lamp, designed to work as an output amplifier of microwave signals in on-board space equipment. Formation - metal-ceramic construction, packaged with magnetic periodic focusing system, with flexible electrode supply leads. Cooling - conductive with radiation cooling of the collector by self-radiation into open space.

Specifications

Operating frequency range 17.5...22

Gain factor 46

Gain irregularity 1.5

Power consumption at nominal supply voltages 275 W

Filament current 2 A

Ready time 150

Weight 1.2 kg

EFFICIENCY 55 %

Continuous power output in saturation mode 120 W
