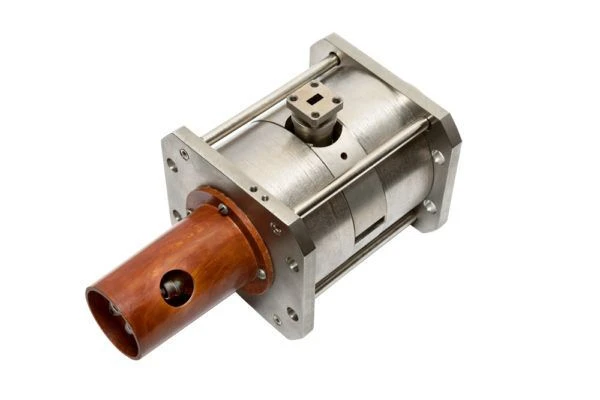

Pulse magnetron MI-457

Microwave Tubes & Amplifiers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Pulse magnetron MI-457-IH Pulse magnetron MI-457-I Pulsed magnetron MI-457-IM

Description

Coaxial magnetron MI-457 of pulse action, packaged partially magnetically shielded design with output pulse power of not less than 50 kW and average output power of 100 W with fast frequency hopping at a rate of 600 cycles/s in the band up to 1000 MHz in the 8-mm wavelength range.Magnetron is designed for use in all-weather radars of civil aviation, in equipment for national economic purposes (and for export), as a generator of microwave oscillations. It can be used in other radars with observance of operating conditions.

Specifications

Filament voltage 12...13.2 V

Filament current 3.2...3.6 A

Weight 3.8 kg

Dimensions, DxWxH 226x115x92 mm

Gamma percent MTBF 500

Anode current 9.6...12.6 A

Anode voltage 13...15.5 kV

Output pulse power 50...80 kW

Operating frequency range 35...36
