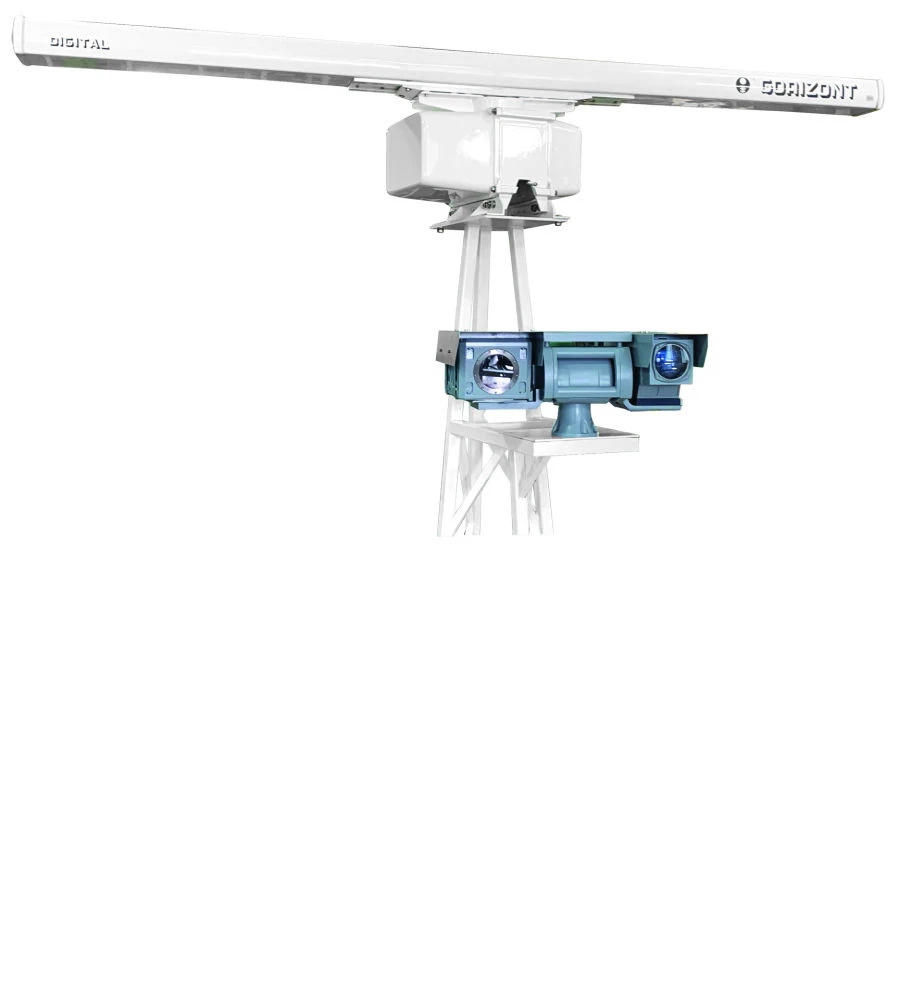

Radar Station "Bussol-SM" for Target Detection

Available for Import

Radar Station "Bussol-SM" for Reliable Target Detection Applications

Radar Equipment

Manufacturer: GORIZONT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

NAYADA-25MP coastal radar station for control of surface situation (radar)

Description

Main specifications .Target detection probability - 0,8. Minimum detection range - not more than 25 metres. Maximum detection range:a) large targets - not less than 24 miles;b) medium targets - not less than 15 miles;c) small targets - not less than 12 miles;d) ultra-small targets - not less than 6 miles.

The height of installation is from 15 metres to 30 metres. Speed of detected targets - up to 60 knots (111 km/h). Number of escorted targets - not less than 200 ts.

Range resolution of the station does not exceed 18 m. The station's directional resolution does not exceed 0.9. Antenna radiation pattern width: a) in the horizontal plane - (0.6 0.06); b) in the vertical plane - (20 +8, minus 2).

Antenna rotation speed of the AP module is (244) rpm. Continuous operation time - 24 hours. Readiness time - not more than 200 s.

Power consumption - not more than 1 kW. Average full service life - not less than 10 years.

Specifications

Frequency of supply voltage

SBVVBG

Reduced atmospheric pressure

525

Wavelength range of the video camera, µm

3.7...4.9

Video camera mode

colored

Operating temperature range

-40...50 °C

Target detection range, nm

Large target - 20

Composition of the complex

- Radar station

Video camera resolution

640x512

Precipitation, mm/h

Speed of air flow in walking position

SBVVBG

Range error of coordinates measurement

10 m

Error of coordinates measurement by direction, deg

0.3

Radiation range

3 cm

Complex control

Life support system

container type

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
