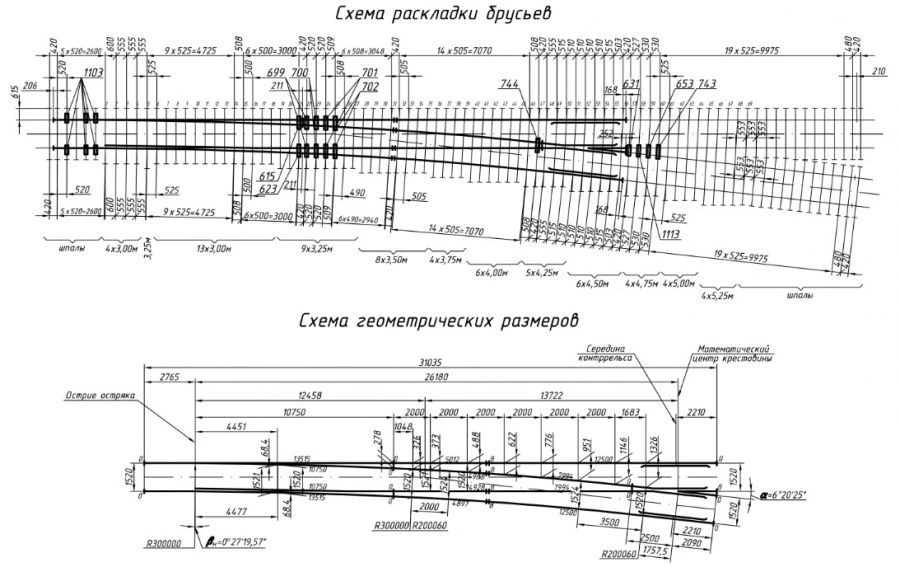

R65 Type Switch Mark 1/9 on Wooden Beams for Efficient Railway Applications

The track crossing of type R65 mark 1/9 on wooden bars is designed for laying on railway tracks. In the arrow used flexible shackles, on the inside of the track frame rails are fixed with elastic terminals, on the outside terminals type PC. The cross member is prefabricated with improved mating of cast and rail parts.

Frame rails have increased front outreach. The shackles and frame rails are HFI hardened. The R65 type R65 grade 1/9 type railway switches of the project 2721.00.000-02/03 are manufactured in the following versions: 2721.00.000-02 - right-handed; 2721.00.000-03 - left.
