Description

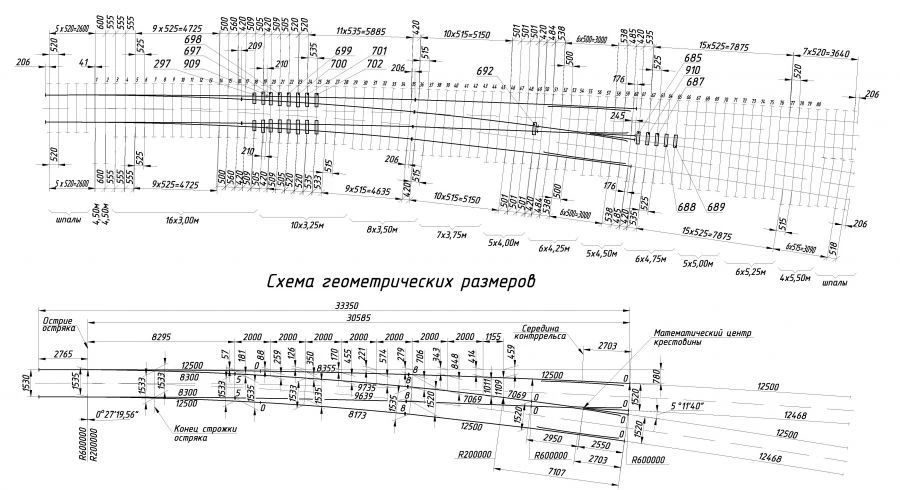

The R65 type track switch of 1/11 grade on wooden bars is designed for transferring rolling stock from one track to another. It is used in the curves of railway lines. The switch has rotating sharps.

The crossbar is prefabricated - the moulded core is connected with rail whiskers. The counter rail is not connected with the track rail. The shackles and frame rails are HFI hardened.

The crossing is made on pads with high flanges. The switch is made with a radius on the main track. The R65 type R65 grade 1/11 switches of the project 2759.00.000-02/03 are manufactured in the following versions: 2759.00.000-02 - right; 2759.00.000-03 - left.

Specifications

Cross brand

1/11

Rail type

?65

View in the direction of a side or crossing track

Left, right

Cross type by construction

Team

Cross type by angle

Spicy

Arrow design

With rotating sharps

Type of single transfer

Curved one-sided

View

Single

Type of product according to PP RF 616

Track equipment and devices and their parts

Type of timber

wooden

Type

?65

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
