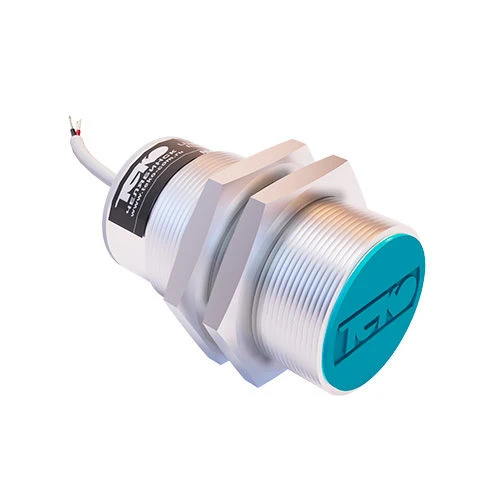

Proximity switch ISB A8A8-31N-10G-LZT2-C-P

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The contactless inductive switch (sensor) ISB A8A8-31N-10G-LZT2-C-P is designed for contactless switching of actuators in industrial automated devices, lines, machines and systems. When approaching to the sensitive surface of ISB A8A8-31N-10G-LZT2-C-P object of influence from any metal there is a damping of the electromagnetic field and a decrease in the amplitude of oscillations of the generator, triggers a threshold device (trigger) and switches the electronic key of the sensor, which performs switching of electrical circuits.

Specifications

Wiring diagram 3-wire

Special purpose Road transport version

With special electrical parameters Increased noise immunity

Working clearance 0...8 mm

Operating temperature range -45...65 °C

Supply voltage ripple factor Less than or equal to 67%

Degree of protection according to GOST 14254-96 IP68

Comprehensive protection Got it

Light indication Got it

Connection / Connection Cable 3x1 kv. mm

Switching frequency, Fmax 300

Voltage drop at Imax, Ud Less than or equal to 2.5 V

Operating voltage range, Urab. 10...30 V

Maximum operating current, Imax 0.5 A

Case Diameter 27 to 50 mm

Housing type Cylindrical threaded

Length 54 mm

Diameter of threaded body M30

Housing material D16T

Connection method Cable

Nominal sensing distance 10 mm

Mounting type Built-in

Enclosure size, DxWxDl M30x1,5x54

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
