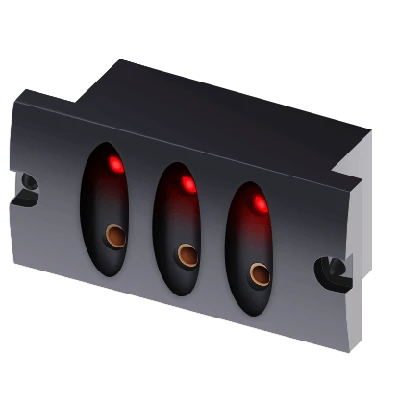

Voltage indication set, KINN type

Designed to indicate the presence of voltage on the busbars of switchgear cells 6-10kV, 20kV, 35kV. The sets do not need a supply voltage of 0,4 kV. Indication is performed by means of capacitive voltage dividers of communication electrodes. Standard cable length is 2.5 m. Symbols: KINNKHX (IE xxx/uu-zz), KINNKHX (IEp xxx/uuu-zz), where KINNH - type of voltage indication set; ?? - nominal voltage of the set, kV; IE, IEp - reference insulator with capacitive divider of IE or IEp types; xxx - insulator height, mm; yu - nominal voltage of the insulator, kV; zz - number denoting the insulator modification in accordance with the catalogue of the company depending on the insulator mounting configuration. If the composition of the set is non-standard, an additional feature is added to the conventional designation (for example, cable length L in metres, insulator colour, etc.).
