Pneumatic buoy pneumatic level gauge URB-PM

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Pneumatic buoy pneumatic level gauge URB-P

Description

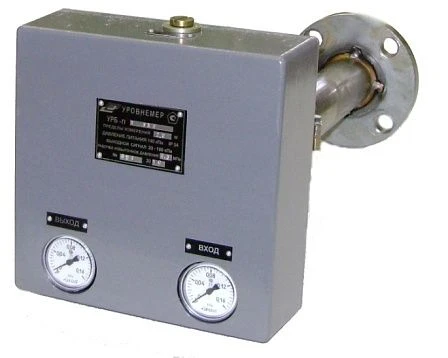

URB-PM pneumatic buoy regulators are designed for operation in systems of automatic monitoring, control and regulation of parameters of production technological processes with the purpose of providing information in the form of a standard pneumatic signal on the position of the interface between two immiscible liquids under vacuum, atmospheric or overpressure.

Specifications

Limit values of the measuring range URB-PM1 and URB-PM2: 0.6; 0.8; 1.0; 1.6; 2.0; 2.5; 3.0

The buoy and the sub-bucket URB-PM1 and URB-PM2: steel 12?18?10?

Connection flange and bracket URB-PM1 and URB-PM2: steel 20 or steel 12Cr18Ni10T

Dimensions H (height of the device): URB-PM1 220mm, URB-PM2 670mm, H1 (height from lever to flange sealing surface): URB-PM1 150mm; URB-PM2 590mm

Weight (without buoy) URB-PM1: 11kg; URB-PM2: 16kg

Temperature range URB-PM1: -50...+100; URB-PM2: -200...-50, +100...+400

Maximum permissible operating overpressure URB-PM1 and URB-PM2: 2.5; 4.0 MPa
