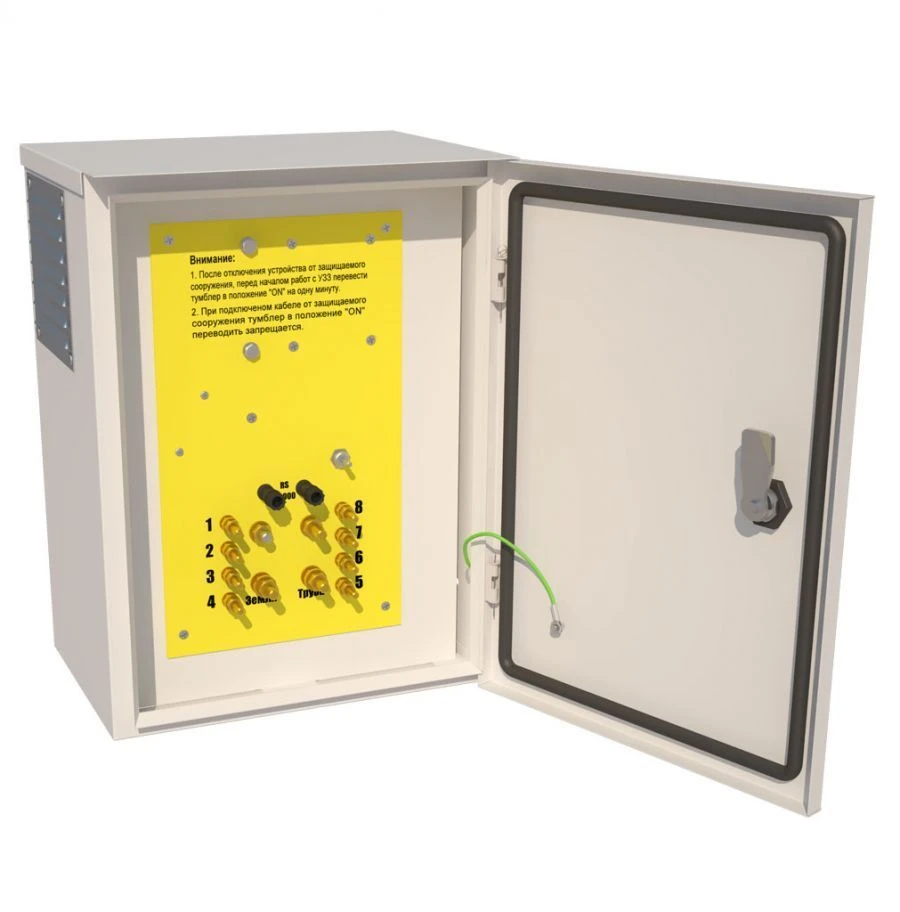

Pipeline Protection Device Against Induced Alternating Current UZT-TES-40A for Safety

Low-Voltage Electrical Panels

Manufacturer: TECHENERGOSNAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

"Pipeline protection device against induced alternating current is designed to protect pipelines from the influence of alternating current sources, to reduce dangerous voltage "pipe-ground" for safe work of service personnel. PPCPs are installed in places where there is a dangerous influence of AC sources on the pipeline. The use of Earthing Devices is only in accordance with the design solution and is not limited to the above mentioned cases. The earthing device consists of horizontal earth electrodes, vertical earth electrodes or a combination of both. The number of earth electrodes as well as the number of sections in each of them shall be determined by calculation."

Specifications

Degree of protection against external influences

ip34; ip54

Climatic version

UHL1

Assignment

Pipeline protection device against induced alternating current is designed to protect pipelines from the influence of alternating current sources; reduce dangerous voltage "pipe-to-ground" for safe work of operating personnel

Equipment

according to the order

Service life, years, not less

15 year

Total resistance of the UZT at nominal output current 40A, ohms, not more

0.2 ohm

Mode of operation

Continuous; continuous

Transient resistance of grounding conductor and earth electrode connection, ohm, not more

0.05 ohm

Overall dimensions of vertical earthing device section, mm

d=16; l=1500

Overall dimensions of the horizontal earthing device section, mm

4x40x2000

Maximum withdrawable current during 1 sec/50 Hz, A

400 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
