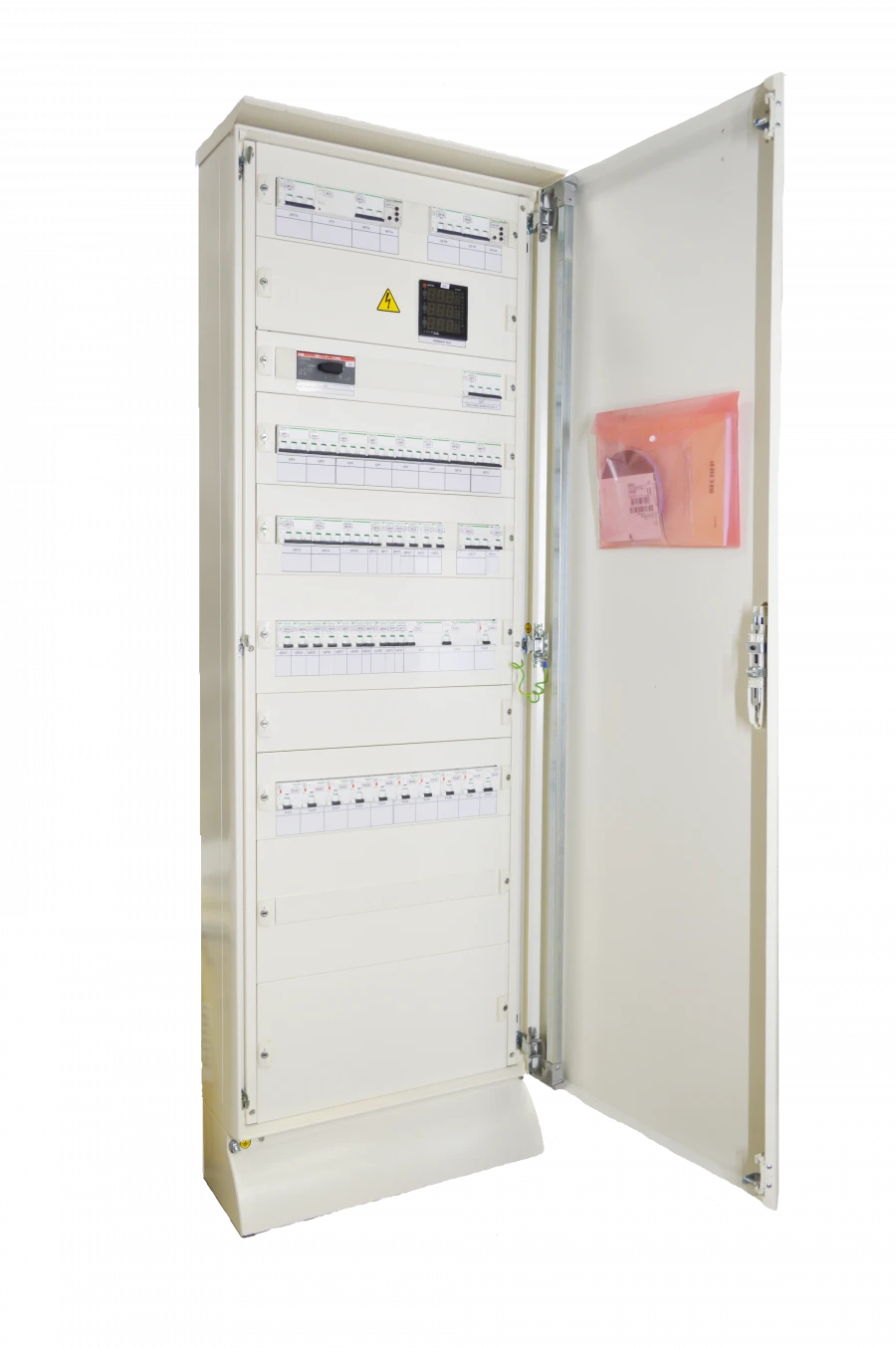

Low Voltage Distribution Board SVR-63-SKV-Vpch-1 for Electrical Energy Management

Low-voltage complete device (LVDD) input-distribution panel is designed for receiving, metering and distribution of electrical energy voltage 230/400 V 50 Hz with earthing system TN-S or TN-C-S, as well as to protect lines and equipment from overloads, short-circuit currents and earth leakage currents
The switchgears are manufactured in cabinet or box type enclosures made of sheet steel with thickness from 0,75 to 2,0 mm.
ShchVR-63-SKV-Vpch-1(m/r) are made in the form of mechanically unconnected shells (cabinet and drawer), inside the box VHR are located frequency converter (hereinafter - IF), output filter, contactor and terminal blocks.
The design of the switchgear and controlgear box provides convenience of installation and safety of maintenance of components and conductors.
