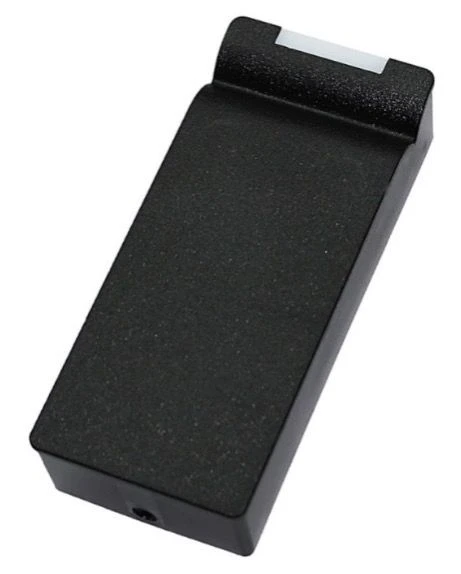

Network Access Controller with Built-in Mifare Reader, Model Matrix-VI

Available for Import

Network Access Controller with Mifare Reader - Matrix-VI for Efficient Access Management

Low-Voltage Electrical Panels

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

It is a combined device that combines in one housing card reader standard ISO-14443A and access controller, and is designed for use in access control and management systems (ACS) in residential and industrial premises. The device can be configured and operated both autonomously and in network mode under the control of an external programme. In addition, the device can operate in three modes: ACS controller, reader or configuration mode. The mode is selected by a special jumper. Due to the fact that the functional purpose of the device terminals is different in different modes, so the connector on the controller board has two groups of signatures, separately for the reader and controller modes.

Specifications

Availability of lock type jumper (electromagnetic/electromechanical)

Armoured glass

Light and sound indication of operation and programming modes

Armoured glass

Setting the duration of lock opening

0.1...25.5

Output for lock connection

TIR transistor

DC operating voltage

8...27 V

Consumption current, not more (at 12V)

180 mA

Switching current

Not more than 5 A

Operating frequency

13.56

Possibility to write information to the identifier memory

Armoured glass

Type of identifiers used

Mifare (Classic, Plus, Ultralight)

Reading range

Up to 6 cm

Characteristics of controller

Autonomous mode

Maximum number of keys

8168 pcs

Event memory capacity

8192

Maximum number of controllers in the network

254 pcs

RS-485 network communication speed, baud rate

19200/57600(auto)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
