Digital input device. 24 signals 24 V DC, group galvanic isolation, possibility of connection of a power source d

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

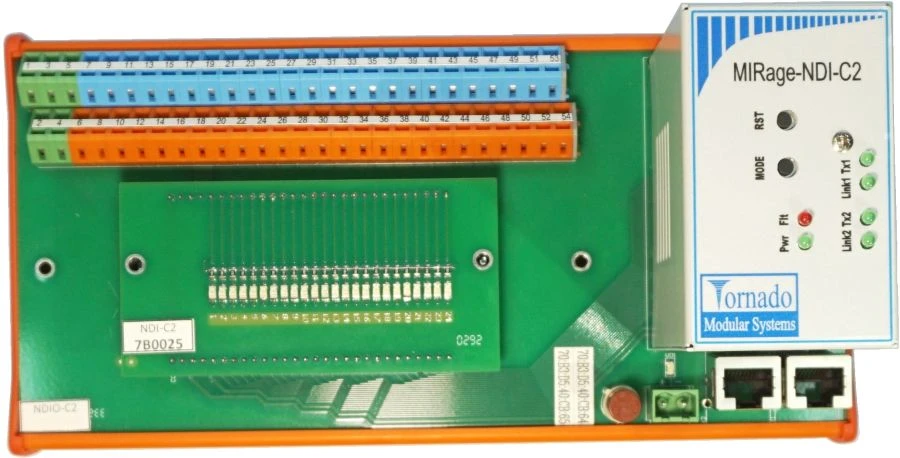

Devices MIRage-NDI-C2 are designed to input discrete signals from sensors such as "dry contact" and "potential output 24 V" when building distributed information and control systems. The devices are designed to read the states of signals of discrete inputs and transmit the values via a redundant digital interface Ethernet 10/100 over twisted pair using the ModBus protocol. The MIRage-NDI-C2 devices have 24 input digital channels (DC) with a common pole. The dry contacts are powered from an external 24 V source. DC have a group galvanic isolation from the system part.MIRage-NDI-C2 devices are designed for the creation of automated process control systems (APCS) in various industries.

Specifications

Number of discrete input channels 24 pc

Type of input signals "Dry contact", potential input

External supply voltage (+/- 15%) 24 V

Consumption current, max. 75 mA

Operating temperature range -25...70 °C

Wago terminal block, conductor cross-section up to 2.5 mm2

Weight, not more 700 g

Overall dimensions 216x108x111 mm

Galvanic insulation Group

Data exchange protocol Modbus TCP/UDP slave

Data transfer rate 10

Interface type Ethernet 10/100BaseTX - 2 channels

Mechanical design DIN rail mounting

Request response time at 100 Mbit network speed, no more than 2

Supply voltage of discrete inputs (+/- 6) 24 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
