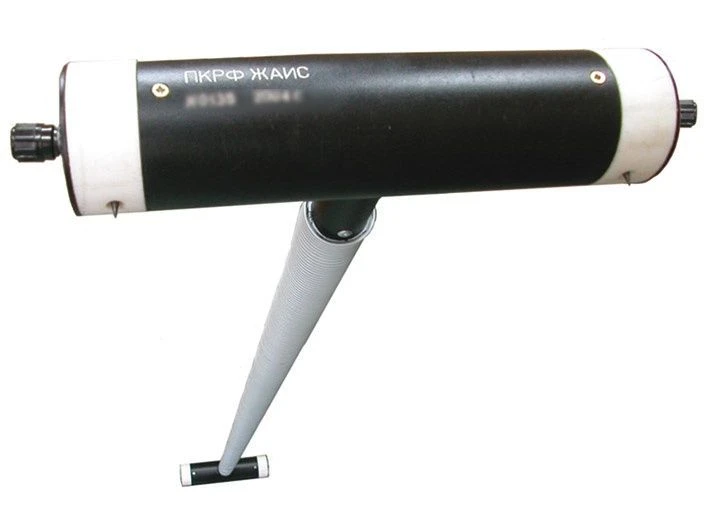

Phase difference control device in rail circuits PKRF

Digital Electrical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed for checking rail circuits for correct polarity alternation on railway in rail circuits

Technical Specifications

The device provides phase difference control at AC voltage at inputs "A" and "B" within the range of	0,3 - 9,0 ?
The device has two independent inputs and provides	visual indication of correct (green or yellow coloured indicator lights up) or incorrect (red coloured indicator lights up) alternation of voltage phases at the boundary of adjacent double- or single-line rail circuits and at the boundary of single-line an
Input resistance of the device at inputs "A" and "B" at frequency 50 Hz is as follows	for input "A" 90±10 ohm, for input "B" - not less than 1 kOhm
The device provides galvanic isolation	Between entrances "A" and "B"
Power supply of the electric circuit of the device is carried out	from controlled circuits
Power consumed by the device at maximum input voltage (9 V) does not exceed	3 VA
Harmonic content in the controlled signal	Up to 10 %
Operation at ambient temperature	-30...40 °C
Operation at relative humidity at temperatures up to +25 °C, up to	98 %
Length of connecting rod	1660 mm
Diameter of connecting rod	22 mm
Length of spigots	266 mm
Diameter of sockets	76 mm
Weight of the device (without packing), not more	2 kg
MTBF, not less	2000
Average service life of the device, not less	10 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
