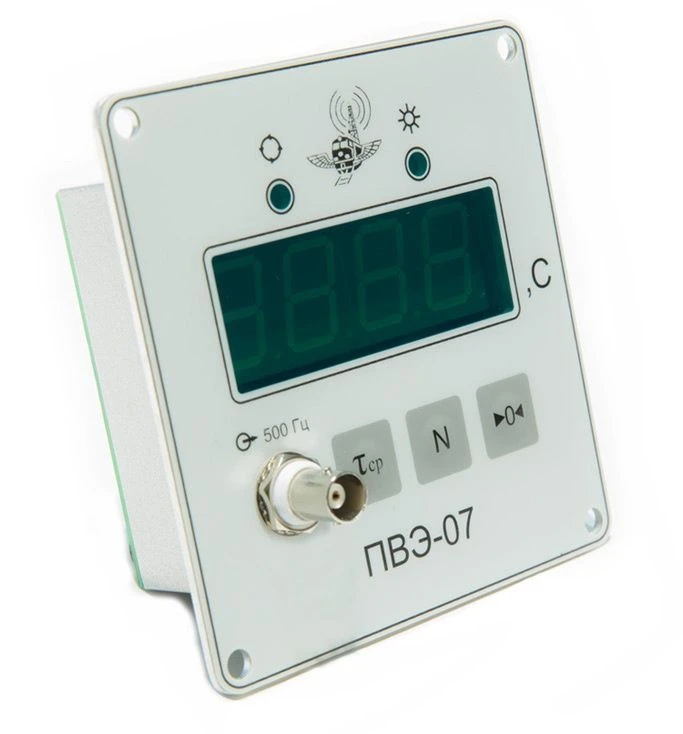

Stopwatch electronic PVE-07

Digital Electrical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for measuring the time intervals of operation and release of relays and other contact devices, forming the average value from the results of several measurements, counting the number of measurements and displaying the results in digital form.
Replaces discontinued electric stopwatches PV-53Shch, used as part of SI-SCB, PDU-67 and similar stands.

Specifications

The stopwatch is controlled by voltage 110 or 220 V applied to the corresponding input. The stopwatch can be controlled by applying a voltage to the "K" input

The instrument has 2 measuring ranges 1) range up to 9.999 s, scale division price (discreteness of counting) 0.001 s, absolute error of measurement not more than: - at direct current control, s: ±0.002; - at alternating current control, s: ±0.012; 2) range up to 99.99 s, scale division value

Operation at ambient temperature 0...45 °C

Operation at relative humidity at 30 °C Flat grinder, Specialised grinder %

Power is supplied from an AC or DC power supply of voltage 12 ± 3 V

Power consumption, max. 5

Overall dimensions 111x106x72 mm

Weight 0.3 kg
