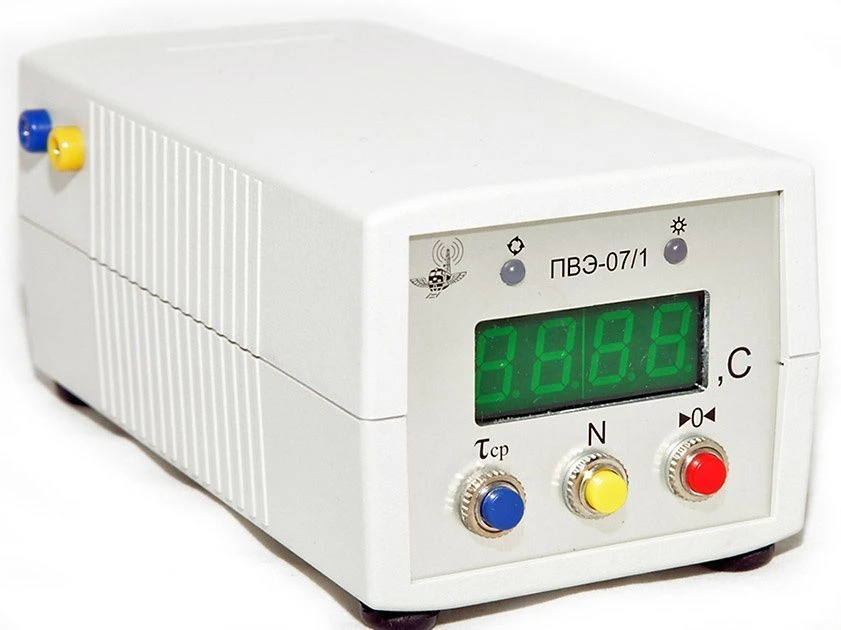

Stopwatch electronic PVE-07/1

Digital Electrical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed to measure the time intervals of operation and release of relays and other contact devices, the formation of the average value of the results of several measurements, counting the number of measurements and displaying the results in digital form
Replaces discontinued electric stopwatches PV-53l and similar.

Specifications

On the side panel of the instrument there is a pair of sockets for monitoring the frequency of the reference oscillator Armoured glass

The stopwatch is controlled by voltage 110 or 220 V applied to the corresponding input. The stopwatch can be controlled by applying a voltage to the "K" input

The instrument has 2 measuring ranges 1) range up to 9.999 s, scale division (discreteness) 0.001 s, absolute error of measurement not more than: - at direct current control, s: ±0.002; - at alternating current control, s: ±0.012;2) range up to 99.99 s, scale division value 0.01

Power is supplied from an AC power supply with voltage of 85...264 V with frequency 47...440 Hz

Operation at ambient temperature 0...45 °C

Operation at 30 °C relative humidity, to Flat grinder, Specialised grinder %

Power consumption, max. 5

Overall dimensions 200x80x100 mm

Weight 0.5 kg
