Panelboard digital electrical measuring instrument: version Shch22.5

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

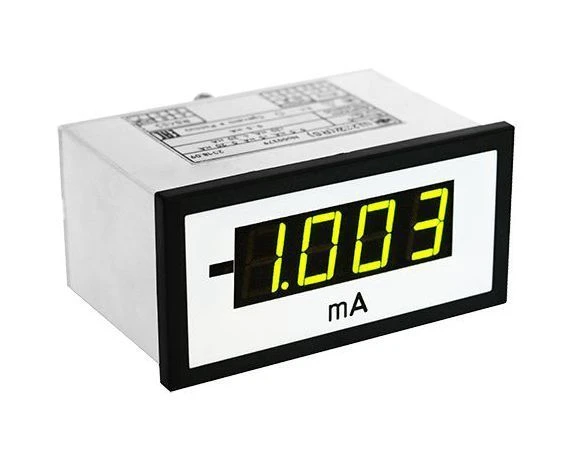

The panel-mounted digital electrical measuring device Shch22.5 is designed to measure current or voltage in DC circuits for operation as part of the technical means of nuclear power plants, as well as in other industries. The device can be used in a set with primary converters for measurement of non-electrical quantities, if the ranges of the output electrical signal of primary converters correspond to the ranges of the input signal of the devices. The device provides the following features: selection of the input signal measuring range, change of the reading range and unit name, data transmission to computing devices via RS485 interface (Modbus RTU, original protocol). The device is made in a metal case of panel mounting. Safety class of the devices: 2, 3, 4 according to NP-001-2015.

Specifications

Overall dimensions, mm 100×50×83

Input signal measurement ranges 0...75 mV (-75...0...75 mV), 0...200 mV (-200...0...200 mV), 0...1 V (-1...0...0...1 V), 0...10 V (-10...0...10 V), 2...10 V, 0...5 mA (-5...0...0...5 mA), 0...20 mA (-20...0...20 mA), 4...20 mA (-12...4...20 mA).

LED indication Digital OU (counting device); number of indicators of digital OU: 4 and sign "-"; height of digits of digital OU: 20 mm; colour of indicators: red, yellow, green

Maximum reading range From -9999 to 9999

Basic error ± 0,1%

Galvanic isolation of input circuits, interface circuits and power supply circuits Got it

RS485 communication interface Quantity: 1; Modbus RTU protocol, original protocol

Power supply voltage (24 ± 4) VDC

Power consumption from the power supply circuit, not more 2.9 V-A

Reprogramming Via "Configurator" program (RS485 interface)

Operating temperature range From -10 to +50 °C (relative humidity 98 % at +35 °C)

Degree of protection IP20

Safety Class 2, 3, 4 according to NP-001-2015

Mounting In the shield

Inspection interval 6 years old

Warranty period of operation 24 mos.

Average service life, at least 15 years

Average MTBF 150000 ?
