Ultrasonic Level Sensor DTU-2-06-900 for Diesel Fuel Measurement

Available for Import

Ultrasonic Level Sensor DTU-2-06-900 for Accurate Diesel Fuel Measurement

Level Measurement Instruments

Manufacturer: L CARD LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Ultrasonic level sensor DTU-2-06-920 Ultrasonic level sensor DTU-2-06-1191 Ultrasonic level sensor DTU-2-06-1500 Ultrasonic level sensor DTU-2-06-1600 Ultrasonic level sensor DTU-2-06-1000

Description

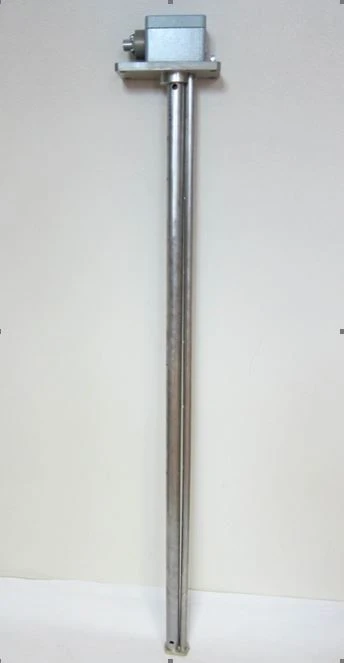

The ultrasonic level sensor DTU-2-06-900 is designed to measure the level and density of diesel fuel according to GOST 305-2013 grades L, Z, A, temperature measurements and transmission of output information via RS-485 interface. The operating principle of DTU-2-06-900 is based on the property of ultrasonic signal reflection from the interface between two media and dependence of ultrasonic signal propagation speed in diesel fuel on its density. DTU-2-06-900 consists of ultrasonic emitter, measuring tube, tube with temperature sensors and electronic unit. DTU-2-06-900 meets the requirements of the technical regulations of the Customs Union TR TS 012/2011 "On the safety of equipment for operation in explosive environments" and has Ex-marking "0Ex ia IIA T6 X"..

Specifications

Power supply voltage

6.5...13 V

Service life

10 year

Degree of protection of the outer shell

IP54

Fuel level measurement limits

3...900 mm

Fuel density measurement range

800...880

Fuel temperature measurement range

-40...50 °C

Tolerance limits of absolute basic error of fuel level measurements

±2 mm

Tolerance limits of absolute basic error of fuel density measurements

±4,5

Tolerance limits of absolute error of fuel temperature measurements

±1 °C

Limits of permissible absolute additional error of fuel level measurements from change of fuel temperature in the range of

±3,5 mm

Limits of allowable absolute additional error of fuel density measurements from change of fuel temperature in the range of

±3,5

Power consumption

2 W

Weight

3.2 kg

Average MTBF

10000

Model

DTU-2-06-900

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
