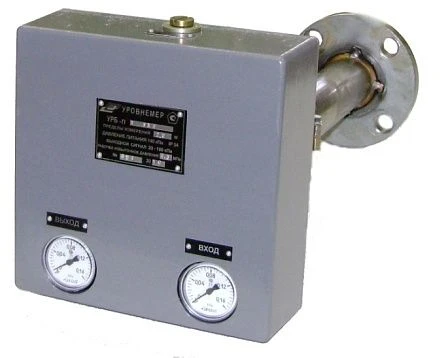

Pneumatic Buoy Level Gauge and Regulator URB-PM for Automatic Control Systems

Level Measurement Instruments

Manufacturer: SKB "Instruments and Systems" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Pneumatic buoy pneumatic level gauge URB-P

Description

URB-PM pneumatic buoy regulators are designed for operation in systems of automatic monitoring, control and regulation of parameters of production technological processes with the purpose of providing information in the form of a standard pneumatic signal on the position of the interface between two immiscible liquids under vacuum, atmospheric or overpressure.

Specifications

Limit values of the measuring range

URB-PM1 and URB-PM2: 0.6; 0.8; 1.0; 1.6; 2.0; 2.5; 3.0

The buoy and the sub-bucket

URB-PM1 and URB-PM2: steel 12?18?10?

Connection flange and bracket

URB-PM1 and URB-PM2: steel 20 or steel 12Cr18Ni10T

Dimensions

H (height of the device): URB-PM1 220mm, URB-PM2 670mm, H1 (height from lever to flange sealing surface): URB-PM1 150mm; URB-PM2 590mm

Weight (without buoy)

URB-PM1: 11kg; URB-PM2: 16kg

Temperature range

URB-PM1: -50...+100; URB-PM2: -200...-50, +100...+400

Maximum permissible operating overpressure

URB-PM1 and URB-PM2: 2.5; 4.0 MPa
