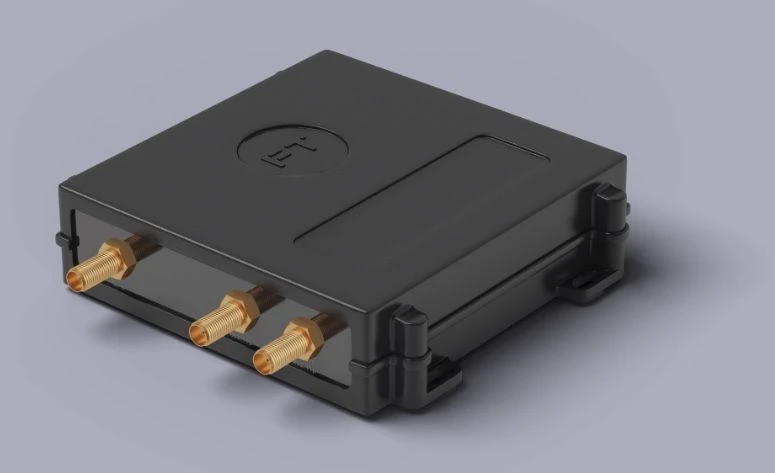

On-board telecommunication terminal (OBU) TEDIX-V2

Radio Navigation Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The TEDIX-V2 on-board telecommunication terminal (OBU) is installed on vehicles and is designed to function as part of a data transmission network using the V2X (IEEE 802.11p) standard between vehicles, road infrastructure elements and intelligent transport system.
The terminal provides the following functions:
- reception / transmission of radio signals in the V2X network using the DSRC standard (IEEE 802.11p)
- receiving signals from GLONASS and/or GPS satellites and determining the geographical coordinates of the object
- interaction with wireless devices using Bluetooth or WiFi technology to organise a human-machine interface for displaying graphic and textual information to the driver of the vehicle
- interaction with the on-board network of the vehicle via CAN interface
- interaction with external devices via RS-232 and RS-485 interfaces
- interaction with a personal computer via microUSB interface when performing terminal configuration tasks

Specifications

Availability of RS-232 pads with 10-pin connector for server management module no

Availability of INT_SW pads with 2-pin connector for tamper switch Armoured glass

Connectors RJ45

Type of network ports Ethernet 100Base-TX

Supported interfaces Ethernet 10/100/1000; CAN RS-485

Number of processor cores 4 pc

Number of processors 1 pc

Slots SO-DIMM

Support for domestic server management module no

Support for domestic hardware and software trusted boot module no

Number of JTAG pads with 10-pin connectors for CPU, KPI diagnostics 1 pc

Number of SPI pads with 8-pin connectors for ROM update 1 pc

Number of USB 2.0 pads with type A connector 1 pc

Number of USB 2.0 peripheral ports with type A connectors 1 pc

Processor frequency <1

Number of Network Ports (Piece) 1 pc

Number of long-term memory ports (HDD, SSD) <8 pc

Number of INT_SW pads with 2-pin connector for tamper switch 1 pc

GNSS receiver sensitivity in capture mode -148

GNSS receiver sensitivity in tracking mode -167

Number of working channels of navigation receiver 184 pc

Frequency range of the V2X transceiver 5.85...5.925

V2X transmitter power 0...20

V2X receiver sensitivity -98

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
