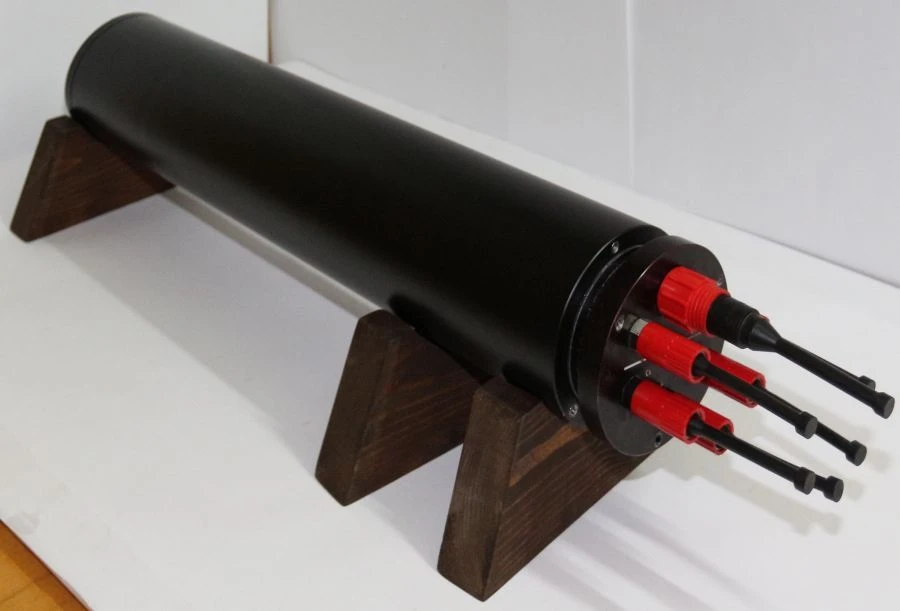

Dual-frequency side scan sonar DGBO-26

The HBO and DGBO series sonars are built on a single modular platform that allows up to 6 acoustic receive/emit channels and up to 2 serial interface channels.
They can be used as an integral part of underwater vehicle vision systems and underwater lighting systems.
The standard version of the sealed boxes and hydroacoustic antennas is designed for a diving depth of 6000m, which can be increased up to 9000m if necessary.
The antenna family consists of one dual-frequency antenna and four single-frequency antennas.
They are designed for installation on towed and autonomous submersibles. Submergence depth 6000m.
Available frequencies: 30kHz, 75kHz, 100kHz, 200kHz, 390kHz and 630kHz.
Modern and technological tool for acoustic survey of the bottom relief and search for objects of natural and anthropogenic origin..
