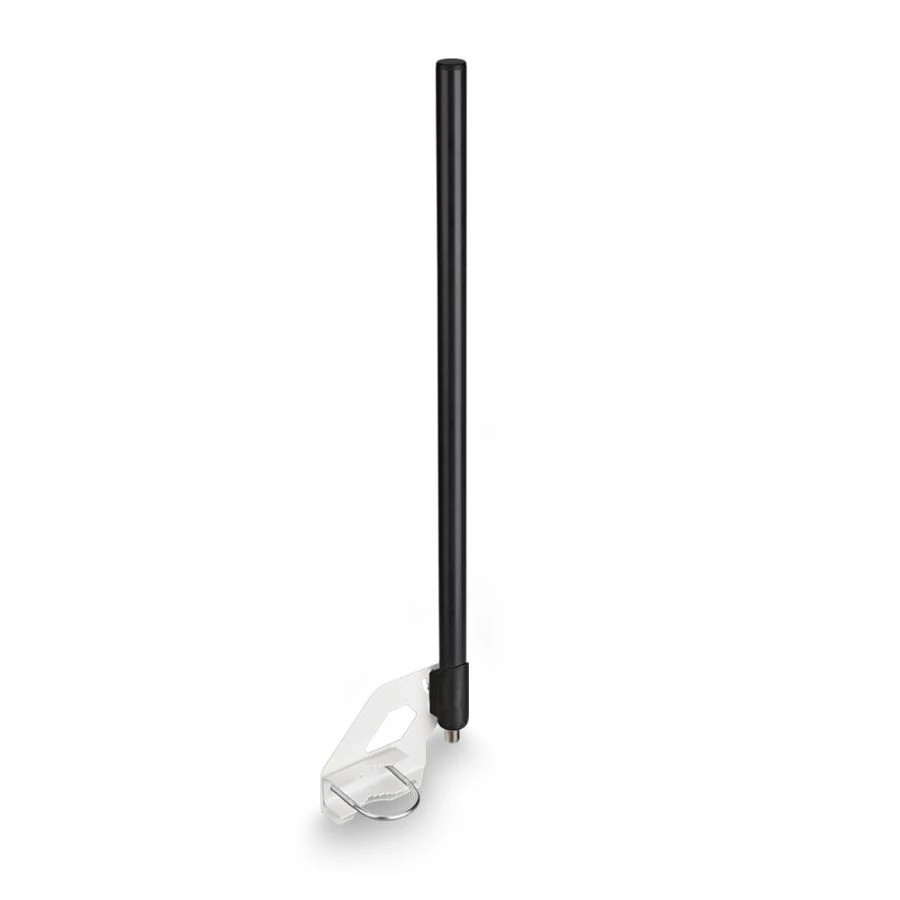

Omnidirectional (Circular) 9 dB GSM1800/3G KC9-2050 Antenna
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The directional antenna does not require pointing at the base station. The opening angle of the directional pattern in the horizontal plane is 360°, in the vertical plane - 8°.
The antenna housing is made of durable and lightweight plastic, which is not exposed to atmospheric influences. Diameter 25 mm. The length of the antenna without the bracket is 750 mm.
The antenna is designed for indoor and outdoor installation and is equipped with a bracket for mounting on a mast or on the wall.
The frequency range of the antenna allows to use it in 3G standard (UMTS 2100). In the whole frequency range the antenna gives a gain of 9 dB.
Two types of connectors are installed on the antenna: F (female) and N (female).
The antenna can be used both for stationary placement, and in mobile version for boats, yachts, cars..
The antenna housing is made of durable and lightweight plastic, which is not exposed to atmospheric influences. Diameter 25 mm. The length of the antenna without the bracket is 750 mm.
The antenna is designed for indoor and outdoor installation and is equipped with a bracket for mounting on a mast or on the wall.
The frequency range of the antenna allows to use it in 3G standard (UMTS 2100). In the whole frequency range the antenna gives a gain of 9 dB.
Two types of connectors are installed on the antenna: F (female) and N (female).
The antenna can be used both for stationary placement, and in mobile version for boats, yachts, cars..
Specifications
Polarization
Vertical
Connector
F- female, N- female
Weight
0.7 kg
Minimum value of the operating radio frequency range
1920
Maximum value of the operating radio frequency range
2170
Gain factor
9
Standing wave coefficient (VSWR)
2
Input impedance
SBVVBG ohm
Maximum permissible power
10 W
Maximum wind load
108
MIMO support
no
Received signals
UMTS-2100
Type of execution
Omnidirectional
Length
750 mm
Width
115 mm
Height
55 mm
Mark
Kroks
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
