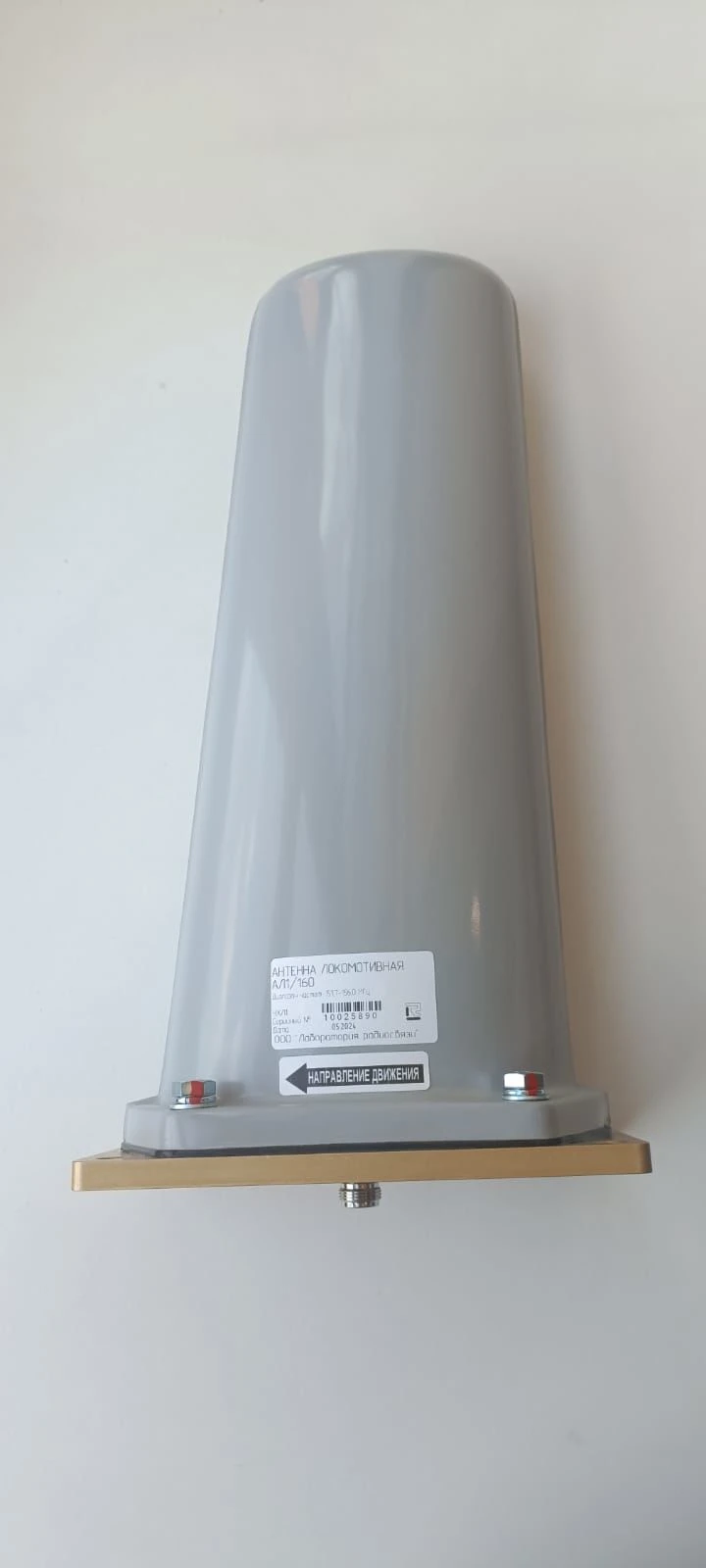

Locomotive antenna AL1/160

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Antenna locomotive AL1/160 KD ALVR.464641.001 is manufactured in accordance with the requirements of technical specifications 65 7700 5-001-62837180-11 TU. It is intended for operation as a part of locomotive radio stations of railway radio communication and radio facilities of railway traffic safety systems in the metre wave range.

Technical Specifications

Polarization	Vertical
Weight	1.6 kg
Operating wind speed	432
Connector	N-type receptacle
Equipment	Antenna, passport, packing
Antenna gain	At least 0 dB with respect to the quarter-wave radiator in the operating frequency band.
Horizontal directional pattern	Near circular with deviation not more than 3 dB.
Wave impedance	50 ohms
Operating conditions	The antenna is designed for operation on all mobile objects of railway transportation in train radio communication networks in the following conditions: - ambient temperature from minus 50 C to plus 60 C; - relative humidity 93 % at temperature plus 2
VSWR	Not more than 1.5
Operating frequency range	151.7...156
Degree of protection in operating position	IP66 according to GOST 14254-2015
Dimensions	(WxDxW) 370x185x110 mm
Maximum power	200 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
