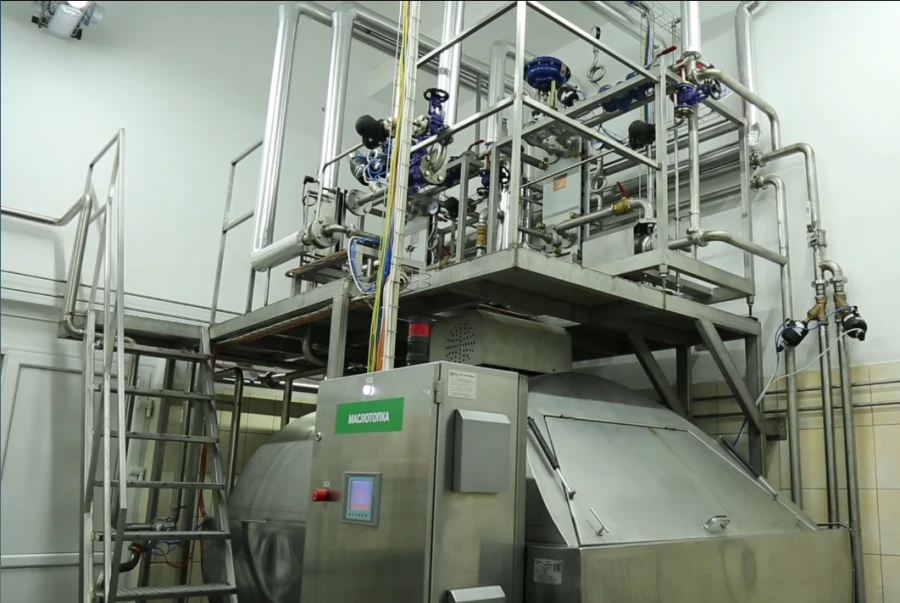

Oil melter type OMT

The OMT oil melter is designed for melting solid or frozen blocks of fat of animal and vegetable origin (butter, margarine, cocoa butter, chocolate, chocolate glaze, etc.), and maintaining in molten state at a given temperature. With CIP washing system. The melter is a unit consisting of a bath, a coil, a grid of melting pipes, a hot water preparation system and a hot water pump.

The bath is a vessel made of corrosion-resistant steel AISI304 with coils of AISI 304 grade, thermally insulated and lined with thin sheet corrosion-resistant steel AISI3 430, providing maintenance of the set temperature in the process of product storage. In the lower part of the bottom of the bath bottom there is a product drain pipe Du 50. The grate of melting tubes is not fixedly located on the installed supports and can slide on them during thermal expansion of the tubes.

The grate is rigidly fixed to the frame by means of couplings DN 32. The couplings must be ...
