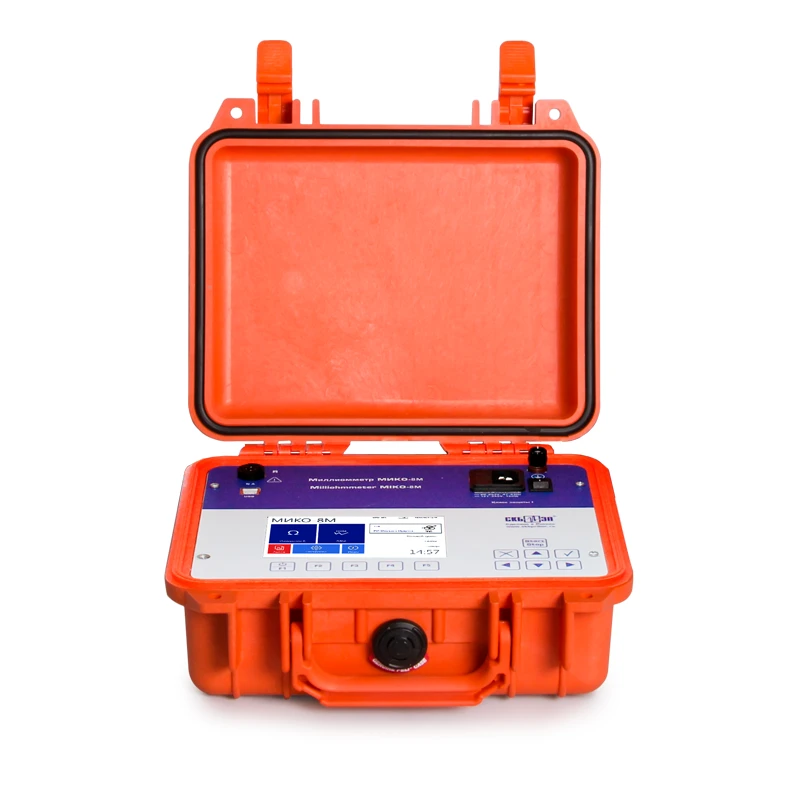

Non-Destructive Testing Milliohm Meter MIKO-8MA for High Voltage Equipment

Eddy Current Testers

Manufacturer: SKB EP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Milliometer MIKO-8M

Description

The software and hardware complex is designed to determine the electroparametric method of non-destructive testing of the technical condition of elements of high-voltage equipment. Also for measuring electrical resistance in inductive and inductive-free circuits in the range of 10 µOhm ÷ 10 kOhm at current strength from 0,001 to 10A. Special modes taking into account specific measurement settings of different objects.

Full automation of the measurement process: calculation of relative deviations of resistance of windings of three phases between each other; conversion of linear resistance of windings into resistance of phase windings and many others. The DRM-test mode (DRM-test), allows to carry out an on-load tap-changer with current-limiting resistors without removing the diverter switch tank cover. As a result, the device provides an evaluation oscillogram.

Touch screen, non-volatile memory, mains or internal battery power supply.

Specifications

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Inspection period

3 year

Temperature range when operating the device

-20 °C to +55 °C °C

Environmental protection in transport position

IP 67

Environmental protection in working position

IP 40

Instrument weight

4 kg

Communication with the MP/PC

Bluetooth / USB cable

Built-in memory

up to 1,000 measurements

Continuous battery life

Battery charging time

Power supply (built-in battery)

Lithium-ion

Measuring current range in DRM mode

0,1 ÷ 10 A A

Accuracy

±(0,1%+0,5 ??)

Measuring current range

0,001 ÷ 10 A A

Resistance measurement range

1 ?? ÷ 10 k? ohm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
