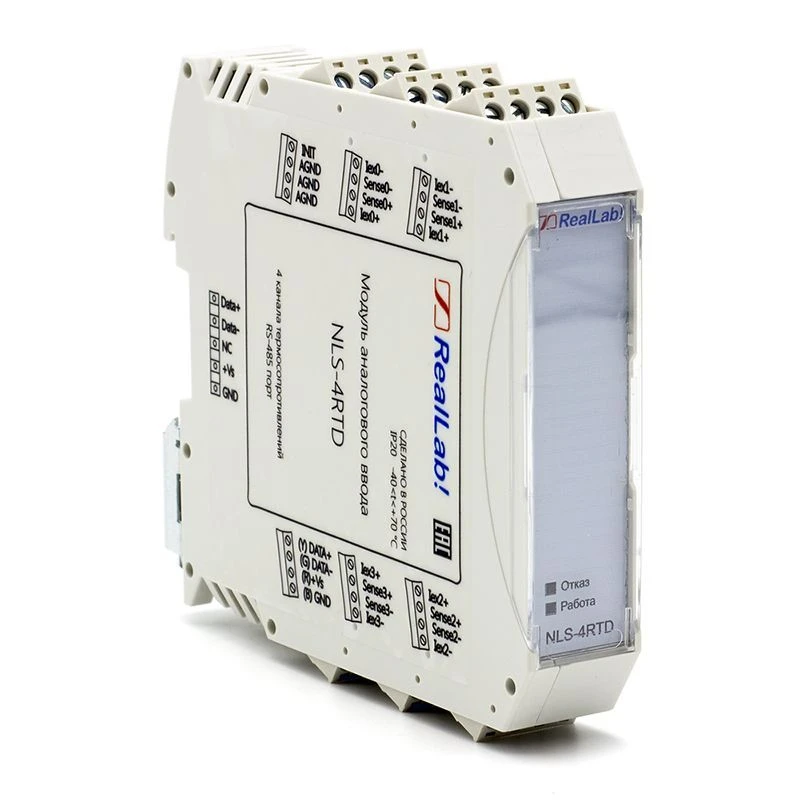

NLS-4RTD Module of analogue input of thermal resistance signals

Purpose:for temperature measurement with TCM, TSP, TSN sensors and temperature stabilisationConnection:4 differential channels of analogue input for thermoresistive transducers TCM, TSP, TSNDi measuring ranges:independent setting of measuring ranges for each channel (ASCII mode only)Connection schemes:4 sensors by 4, 3 or 2-wire connection schemeDigit capacity:16 digitsSensor control:hardware diagnostics of open circuit and k.?. sensorGalvanic isolation: voltage galvanic isolation 2500 V protection: 11 types of protection: from overvoltage and current overload on the input, output, interface, from overheating, static electricity, etc.Measurement error: the basic error of measurement is not worse than 0,1%Interference coefficient: the coefficient of attenuation of interference of the general type with a frequency of 50 Hz - not less than 100 dBTemperature: operating temperature range from -40 to +70 SIInterface connection: interface RS-485
