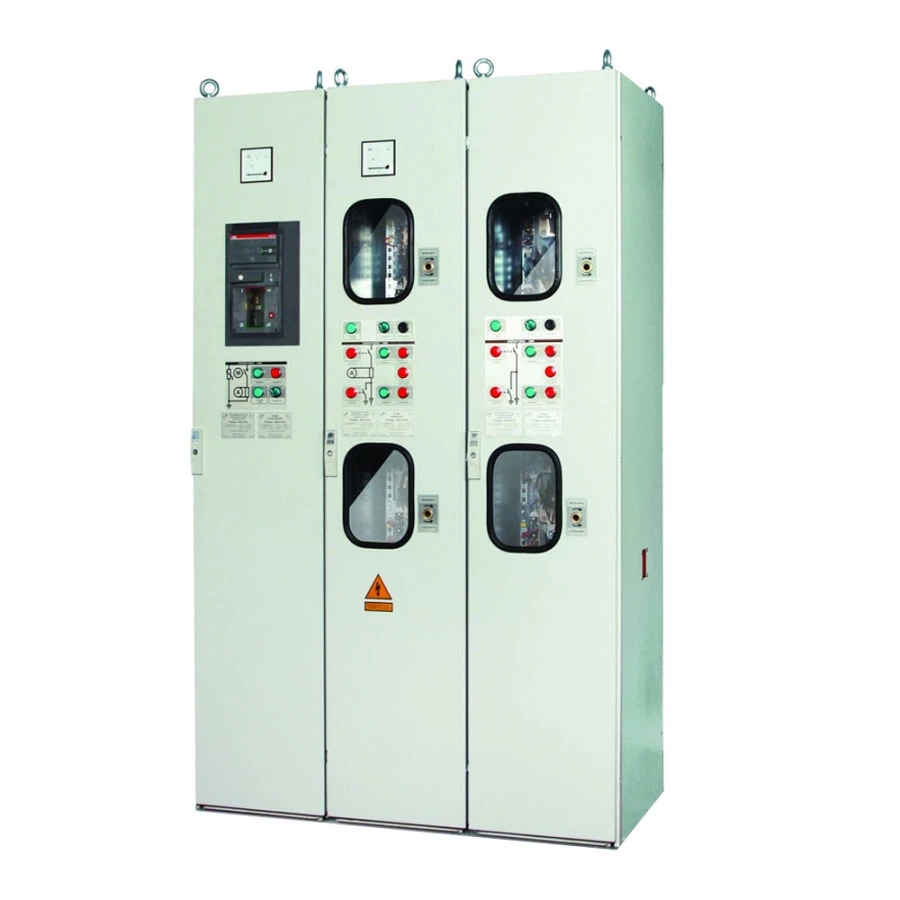

Negative Bus Distribution Unit RUSH-600 for Tram and Trolleybus Applications

Low-Voltage Electrical Panels

Manufacturer: ENERGIYA OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Distributing device of negative bus RUOSH-600 is designed to work in the distribution system of direct current (-) 600V traction substations of tram and trolleybus. Switchgear RUOSH-600 consists of the following cabinets: Unit cabinet RUOSH-600A is designed for connection and switching without current of negative supply cables of rectifier unit to negative bus (-) 600V. Linear switchboard RUOSH-600L is designed for connection and switching without current of negative supply cables of the contact network to the negative bus (-) 600V. Grounding cabinet RUOSH-600Z is designed to ground the negative bus (-) 600V in order to ensure the safety of repair work on the contact network.

Specifications

Types of RUOSH-600 cabinets

RUOSHm-600A

Rated voltage of DC power circuits

600 V

Rated current of power circuits by enclosure type

2000 A

Types of disconnectors to be used (main, earthing)

P15-1250M1

Type of switch-disconnector used

S6D800

Total switch-on/off time, s

Drive of switch-disconnector, disconnect switch

Motorised with manual override option

Rated voltage of control, lighting/signalling circuits (alternating current), volts

220/36

Test voltage between power circuits, enclosure housing and control circuits, not less, kV

Height

2000 mm

Width

600 mm

Depth

400 mm

Weight by types of cabinets, not more than

110 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
