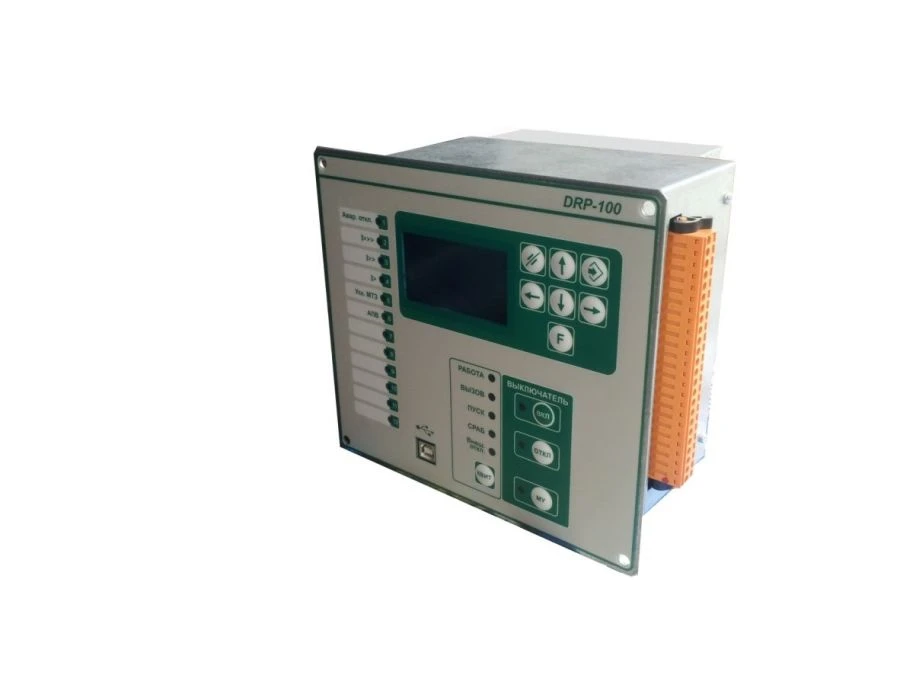

Digital Relay Protection Device DRP-103-C-20/1-TD for Voltage Control and Automation

Low-Voltage Electrical Panels

Manufacturer: MECHATRONICS RA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Digital device DRP-103-V-20/1-TD Digital device DRP-101-L-20/1-TD

Description

Designed to perform the functions of relay protection, automation, control, measurement and signalling of input circuit breakers with voltage from 6 to 35 kV at facilities where there is a possible loss of operating current in both emergency and normal modes of operation, as well as at facilities without operating current.

Specifications

Average service life

25 year

Average MTBF

125000

Warranty period

5 year

Overall dimensions

195×175×152 mm

Weight

3.5 kg

Maximum power consumption

6 W

Number of digital inputs

10 pcs

Number of analog inputs

6 pcs

Range of monitored voltage values

2...280 V

Ranges of monitored current values

0,5 – 100,0 A

Voltage range of AC or rectified current operating supply voltage

66...264 V

DC operating supply voltage range

88...370 V

Rated voltage of digital inputs

220 V

Communication interfaces

RS-485; USB

Number of bypass channels

2 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
