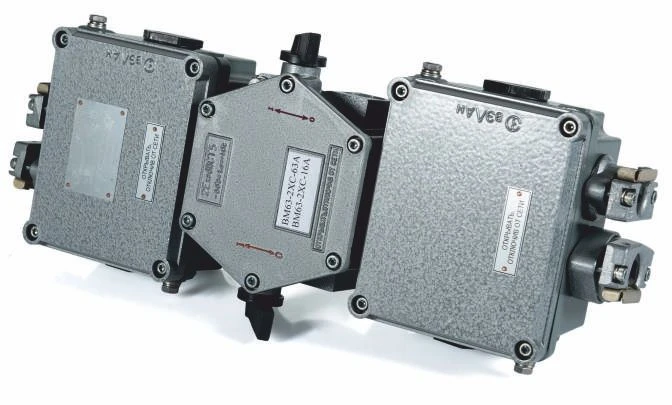

Explosion-Proof Switching Module MKV1 for Safe Energy Distribution

Modules of switching explosion-proof type MKV1, are designed for distribution of electrical energy and protection of power and lighting electrical networks of alternating and direct current electrical installations of chemical, gas, oil and other industries.Explosion-proof modules consist of a switching compartment and one box of inputs and outputs. In the switching compartment there is a circuit breaker with RCD, switching on and off of which is carried out by a handle located on the outer side of the shell. The cable glands of the module ensure the entry and sealing of openly laid round cables.

Modules of MKV type allow the possibility of flexible or armoured cable with diameter from 10 mm to 22 mm for modules with current up to 32 A, with diameter from 18 mm to 29 mm for modules with current up to 63 A. The contact terminals of the modules allow the input of flexible or armoured cable with diameter from 10 mm to 22 mm. Contact terminals of modules allow connection of cables with cross-section from 6 sq.

mm to 16 sq. mm.
