Multifunctional digital electrical metering device: ShchM96 version

Digital Electrical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

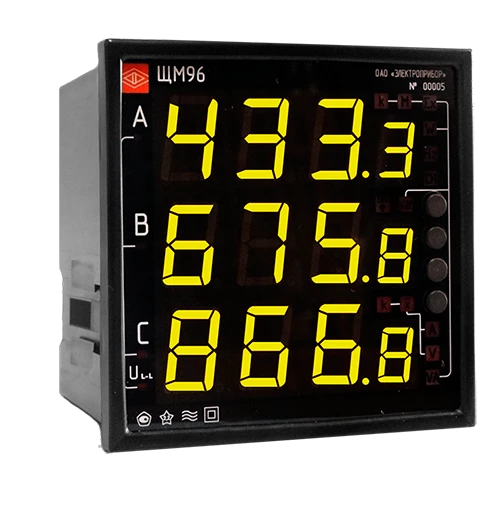

The device ShchM96 is designed to measure electrical parameters of three-wire or four-wire three-phase AC networks with frequency 45-55 Hz. It is used in data acquisition systems to transfer measurement results to upper level systems or as a universal measuring device, instead of different electrical measuring devices: ammeters, voltmeters, wattmeters, varmeters, frequency meters. The device provides the possibility of: reprogramming of display ranges; setting of min and max settings within the measuring range; regulation of indication brightness; connection of external indication modules. The instrument is included in the State Register of measuring instruments of the Russian Federation No. 63217-16. Interverification interval - 10 years.

Specifications

Overall dimensions, mm 96x96x103(with rear protective cover), 96x96x75,6 (without cover)

Weight, kg 0,5

LED indication 3 blocks of seven-segment indicators (4 indicators per block); Sign height: 20 mm and 14 mm

Input signal 1 A, 5 A, I/1, I/5 (0 to 2.0-Inom); 100 V, 400 V, U/100 (0 to 1.2-Unom); 45...55 Hz

Measurement time 0.1 sec.

Basic error Current and voltage: ± 0.2 %; power: ± 0.5 %; frequency: ± 0.01 Hz; analogue output: ± 0.5 %

Galvanic isolation of input and output circuits, power supply circuits Got it

Communication interface RS485 Quantity: 1, 2; Protocol: Modbus RTU; Interface exchange rate: 9600, 19200, 38400, 57600 bits/sec.

Ethernet Communication Interface Quantity: 0, 1; 100BASE-TX; Protocols: Modbus TCP, IEC 60870-5-104

Analog outputs Quantity: 0, 1, 2, 3; Reprogrammable ranges: 0...5 mA, 4...20 mA, 0...20 mA, 0...2.5...5 mA, 4...12...20 mA, 0...10...20 mA, -5...0...+5 mA

Time synchronization Ethernet (NTP protocol, IEC 60870-5-104); synchronisation accuracy from external source not more than 1 ms; counting accuracy not more than 500 µs; in absence of synchronisation not more than 0,5 sec.

Discrete inputs Quantity: 0, 4, 6, 8; input signal type "dry contact", voltage at open contacts of the device =24 V, current 10 mA

Discrete outputs Quantity: 0, 1, 2, 3 (modes: switch on, switch off); =300 V, ~200 V, 100 mA

Power supply voltage 220VU - universal supply: supply voltage from 85 to 270 V AC with frequency 50 Hz or from 100 to 265 V DC; 24VN - (24+12/-6) V DC.

Power consumption from the power supply circuit, not more 15 V?A

Reprogramming Via the "Configurator" programme (RS485, Ethernet interface) or via the front panel push buttons.

Operating temperature range -40 to +70 °C (relative humidity 98 % at +35 °C); -40 to +55 °C (relative humidity 95 % at +25 °C) - for devices with "Sea Register" acceptance)

Degree of protection IP50; IP52 - for devices with "Marine Register" acceptance

Inspection interval 10 years

Warranty period of operation 60 mos.

Average service life, at least 30 years

Average MTBF 250000 ?
