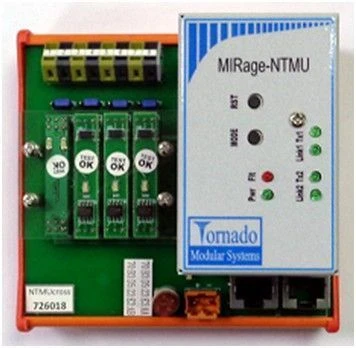

MIRage-NTMU Timer Processing Device for Measuring Signal Characteristics

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NTMU timer processing devices are designed to measure the time characteristics of a periodic pulse signal and generate a pulse sequence with variable pulse repetition rate at a given rate of change of pulse repetition rate. The number of measuring channels (IR) of periods is 3, the number of IR of pulse generation is 1. Data exchange is carried out via redundant Ethernet interface via UDP protocol. When configuring and controlling the operating modes of the device, the ModBus protocol add-on is used, and the transmission of the flow of measured period values takes place in direct RAW mode without requests. MIRage-NTMU devices are designed to create automated process control systems (APCS) in various industries. The MIRage-NTMU devices use the central processor K1986BE92QI manufactured in the Russian Federation.

Specifications

Base frequency of the processor

0.1

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 RJ-45; +24V power supply; spring terminals for signal cable

Form factor

din-35 rail mount

Power Type

+24V DC

Consumption current, mA

Data transfer rate

100

Type of I/O channels

Measurement of time intervals and generation of time sequences

Weight

450 year

Dimensions width

114 mm

Galvanic insulation

Group

Power consumption

2 W

Data exchange protocol

Modbus UDP/TCP Slave

Polling time

Number of timer channels

4 pcs

Height

108 mm

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
