Discrete Output Device for Low Power Signals - MIRage-NDO-C2 for Reliable Switching

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

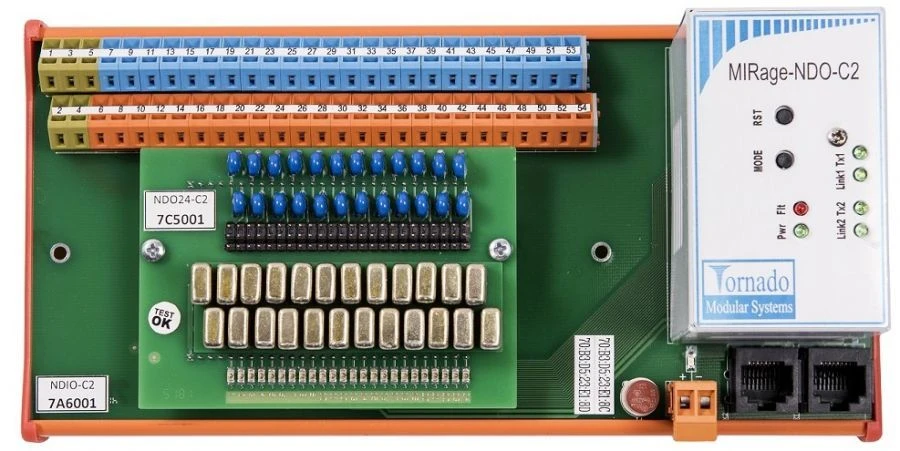

Devices MIRage-NDO-C2 are designed to form low-power discrete signals of direct and alternating current. The channels are switched via relay contacts. The relay contacts are switchable, the switching contact is common for all channels, and for each channel can be selected type of connected contact: normally open or normally closed.

The selection is made by means of jumpers installed on the interface board. The relay is controlled via a redundant Ethernet 10/100 twisted pair digital interface using the ModBus protocol. MIRage-NDO-C2 devices have 24 output discrete channels (DC).

The nominal switching voltage is 24 V. The DCs are galvanically isolated from the system part. MIRage-NDO-C2 devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Architecture

autonomous distributed I/O with redundant ethernet communication

Form factor

din-35 rail mount

Power Type

+24 dc

Base frequency of the processor

0.1

Number of discrete control channels

24 pcs

Polling time

Data exchange protocol

modbus udp/tcp slave

Power consumption

B1/B8 2100/900 MHz W

Galvanic insulation

Group

Dimensions width

216 mm

Weight

700 year

Type of control channels

digital output 24V

Height

108 mm

Data transfer rate

100

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
