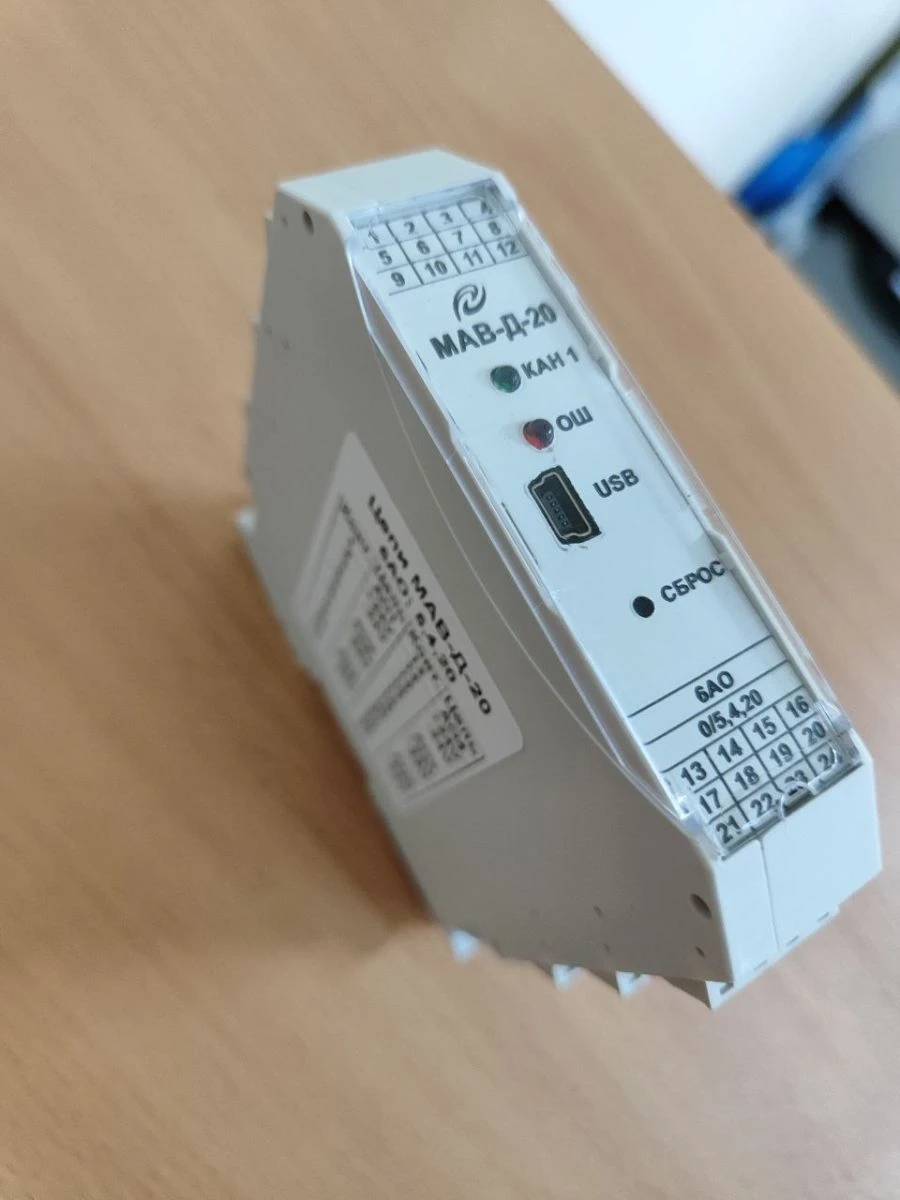

Module of analogue signals MAV-D-20 KGZhT.426439.058-20

Module analogue signals MAV-D-20 performs the functions of digital binary code into the output analogue DC signal (DAC). The analogue output is configured to output signal ranges of 0-5 mA, 0-20 mA or 4-20 mA by software. The outputs are galvanically isolated. The duration of digital-to-analogue conversion of 4 channels of the module is no more than - 320 ms. Power supply of output amplifiers and load of analogue output channels is provided from external DC sources with voltage 24V. Each output is powered from a separate (its own) source, otherwise the galvanic isolation between the output channels is broken. The current consumption of the output channel amplifier from the external power supply does not exceed 8 mA without taking into account the current in the load (or consumed by the load). The modules perform diagnostics of analogue output channels. If the output signal changes by 3% of the set value, an error signal is generated. Type and number of outputs: 6AO.
