Available for Import

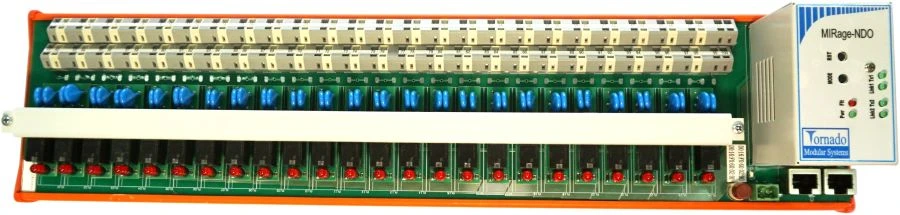

Digital output device. 24 signals up to 3 A at 250 V AC or 0.25 A at 250 V DC, individual galvanic isolation (MIRage-NDO-L).
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The MIRage-NDO devices are designed to output discrete signals up to 3 A at 250 V AC or 0.25 A at 250 V DC when building distributed information and control systems. The control commands are sent to the discrete outputs via a redundant digital Ethernet 10/100 twisted pair interface using the ModBus protocol. MIRage-NDO devices have 24 discrete output channels (DC). DC have galvanic isolation from each other and from the system part.MIRage-NDO devices are designed to create automated process control systems (APCS) in various industries.
Specifications
Request response time at 100 Mbit network speed, no more than
2
Number of discrete output channels
24 pc
Mechanical design
DIN rail mounting
Interface type
Ethernet 10/100BaseTX - 2 channels
Data transfer rate
100
Data exchange protocol
Modbus TCP/UDP slave
Galvanic insulation
Individual
Overall dimensions
450x108x111 mm
Weight, not more
1400 g
Wago terminal block, conductor cross-section up to
2.5 mm2
Operating temperature range
-25...70 °C
Consumption current, max.
430 mA
External supply voltage (+/- 15%)
24 V
Type of input signals
Switched relay contacts
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
