Discrete output device. 16 signals up to 3 A at 250 V AC or 0.25 A at 250 V DC, individual galvanic isolation,

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

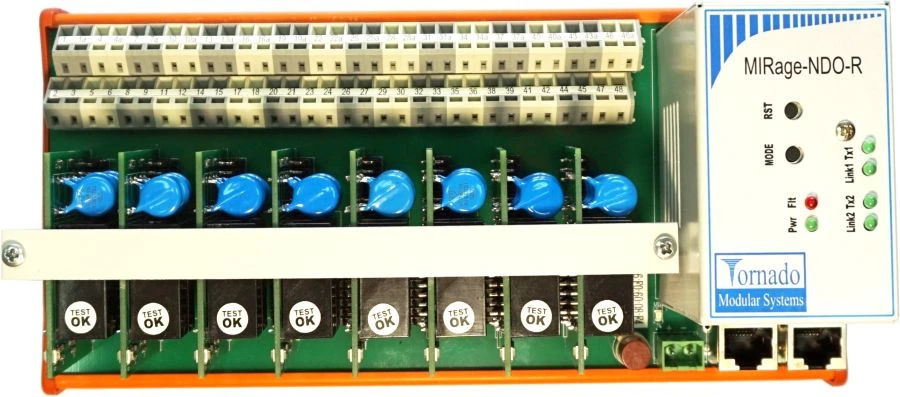

Devices MIRage-NDO-R are designed to output discrete signals up to 3 A at 250 V AC or 0.25 A at 250 V DC in the construction of distributed information and control systems. The control commands are sent to the discrete outputs via a redundant digital Ethernet 10/100 twisted pair interface using the ModBus protocol. MIRage-NDO-R devices have 16 discrete output channels (DCs). DC have individual galvanic isolation from each other and from the system part.MIRage-NDO-R devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Type of input signals Switched relay contacts

External supply voltage (+/- 15%) 24 V

Consumption current, max. 250 mA

Operating temperature range -25...70 °C

Wago terminal block, conductor cross-section up to 2.5 mm2

Weight, not more 1000 g

Overall dimensions 216x108x111 mm

Galvanic insulation Individual

Data exchange protocol Modbus TCP/UDP slave

Data transfer rate 100

Interface type Ethernet 10/100BaseTX - 2 channels

Mechanical design DIN rail mounting

Request response time at 100 Mbit network speed, no more than 2

Number of discrete output channels 16 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
