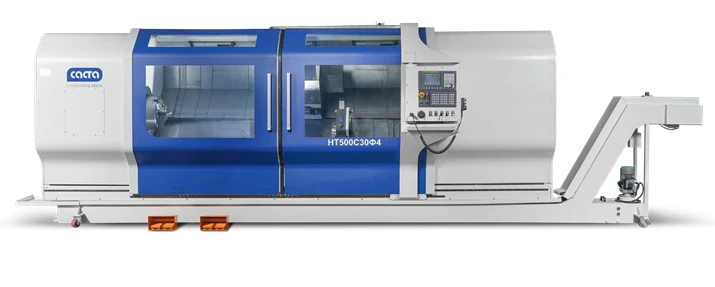

CNC Lathe Machine NT500F4 for High-Speed Precision Machining

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The NT500F4 CNC lathe (with modifications NT500C10F4, NT500C20F4, NT500C30F4) combines high-speed machining capabilities, high positioning accuracy and repeatability, and high torque. -Machine version with counterspindle and Y-axis is possible. -All these features expand the machine's technological capabilities, allowing for greater flexibility.

-The 45° tilted, solid grey cast iron bed with high damping characteristics. <ul> <li>- Depending on the selected layout, the machine can be equipped with rolling or sliding guideways. Regardless of the type of guideways, the machine is equipped with ground ball screws with accuracy class C3, guaranteeing high positioning accuracy and repeatability of the machined dimensions.</li> </ul>Clearance-free roller guideways guarantee high dynamics over a long service life.

Specifications

Type of product according to PP RF 616

Lathes

Length

5925 mm

Width

2625 mm

Height

2300 mm

Machine weight, not more

12000 kg

Largest diameter of the workpiece to be mounted above the bed

800 mm

Largest diameter of the workpiece to be machined above the slide

600 mm

X-axis travel (transverse movement of the slide)

305 mm

Z-axis travel (longitudinal movement of the slide)

3000 mm

C-axis travel (spindle rotation)

+/- 360 deg. (unlimited)

Tailstock movement

2800 mm

Traversing in the V axis (lunette)*

2600 mm

Moving in the Y* axis

±55 mm

Working feeds in X, Z axes

10 (6* option) m/min

Accelerated movement in X, Z axes

24 (10* optional) m/min

Working feed rates in axes V, W

2 m/min

Working feeds in the Y axis

10 m/min

Working feeds in the C-axis

Type of encoders on linear axes X, Z

Motor encoder

Sensor type on circular axis C

External circular sensor

Circular sensor accuracy

±5 sec

Positioning accuracy

±0.005 mm

Repeatability

0.005 mm

Maximum spindle speed

3000

Maximum torque

550/800 (2000/3100* optional) Nm

Speed control

Stepless, in 2 ranges

Main engine power

22/26 kW

Spindle end

?11

Chuck diameter

?250 (?315*, ?400* optional) mm

Chuck type

Hydraulic

Spindle bore diameter

?102 (?55* optional) mm

Diameter of the hole in the spindle for the bar

?90 (?42* optional) mm

Diameter of the counter spindle bore

55 mm

Bar hole diameter

42 mm

Highest rotational speed

5000

Spindle face to DIN55026

Motor power/30 min

22/26 kW

Highest torque

633/800 Nm

Attachment of the turret tool

VDI50 (VDI60* optional)

Turret tool change time

0.20-0.34 sec.

Number of turret tool slots

B1/B8 2100/900 MHz pcs

Turret positioning accuracy

±4 arc sec.

Maximum rotational speed of the turret drive tool

4000

Turret tool drive power

5.5 kW

Turret drive unit shank standard

DIN 1809

Moving the tailstock quill

150 mm

Diameter of tailstock quill

150 mm

Tailstock quill taper

Morse 6

Maximum pump pressure

4 (20* optional) bar

Coolant tank capacity

500 l

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
