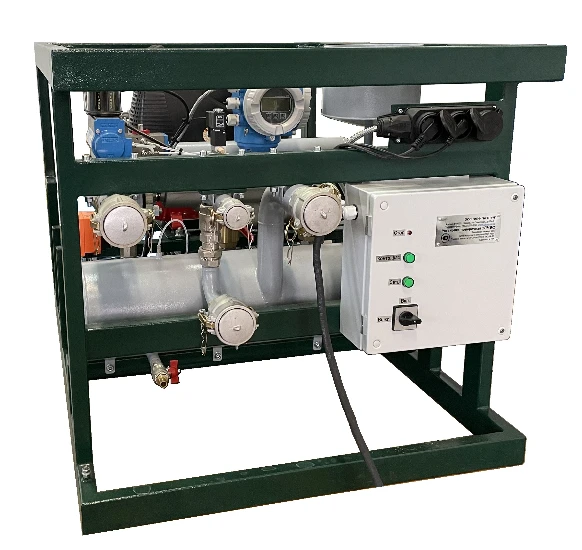

Mobile verification unit UPMV/2

Purpose: for reproduction, storage and transfer of liquid volume unit. Measured medium is water. The principle of operation of the units is based on reproduction of liquid volume in the flow at a certain liquid flow rate (in the range from 6 to 30 cubic metres per hour), created by the working liquid supply device - pumps, and measurement of liquid volume by measuring instruments used in the units as reference: flow meter - liquid counter and (or) with the help of level gauge. The control system, data acquisition and processing in automatic mode compares the volume of liquid measured by the reference means (or reference means) of measurements as part of the installation with the capacity of the tank truck (transport measure) or tank. At the end of the verification, a verification protocol protected from editing (correction) is formed with the possibility of adaptation to a specific quality management system (QMS). The installation is controlled by a personal computer - laptop and specialised...
