Multibeam acoustic flowmeter Volga ML

Flow Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

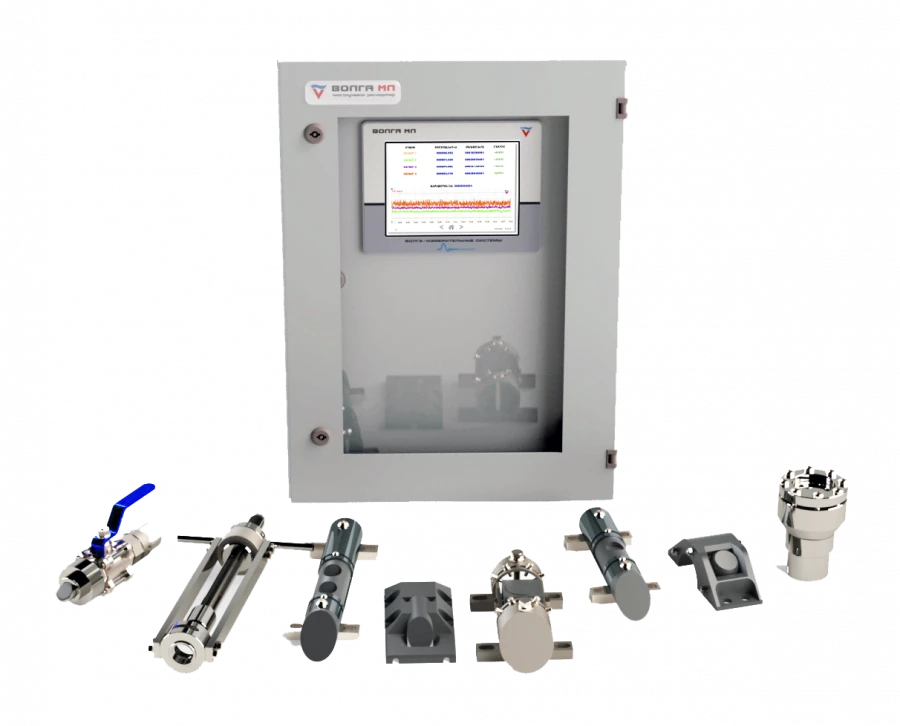

The Volga ML acoustic multibeam flowmeter is designed to measure the volumetric flow rate and volume of liquid in water pipes with pressure and non-pressure flow regime. The measured liquid can be: - natural and tap (treated) water; - waste water of low and medium pollution degree; - cooling circulating water of power engineering facilities; Application areas of the flowmeter: - turbine water lines of HPPs; - water conduits of TVS systems of TPPs and NPPs; - sewage treatment plants, water treatment stations; - pumping stations; - irrigation and land reclamation systems; - natural channels; - commercial metering units; Distinctive features: - high measurement accuracy; - full colour touch screen; - wide range of highly reliable acoustic transducers; - full compliance with IEC IEC IEC60041, ASME RTS-18, IS06416, GOST R 51657.5-2002; - logging of operating time, logging of events and errors; - MQTT protocol support for operation in Industrial Internet of Things (IIoT) systems.

Technical Specifications

Working pressure	0...14 MPa
Mark	Volga ML
Application	Liquid flow measurement
Temperature of the medium	0...60 °C
Flow speed range	0.05...20
Tolerance limits of relative error of flow measurement at pressure flow ?n	- when measuring by diameter±1,0+0,2/v - when measuring by two chords±0,4+0,2/v - when measuring by three chords±0,32+0,2/v - when measuring by four chords±0,25+0,2/v where v - value of liquid flow velocity, m/sec. %
Measurement range of the distance from the primary acoustic transducer to the interface (depth and position of the bottom or t	0.05...5000 mm
Limits of permissible reduced error of measurement of the distance to the interface (depth and position of the bottom or solid o	-0.3...0.3 %
Diameter of water pipe/width of water pipe	0.5...15 m
Maximum channel width when measuring in non-pressurised mode	100 m
Name	Acoustic multibeam flowmeter

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
