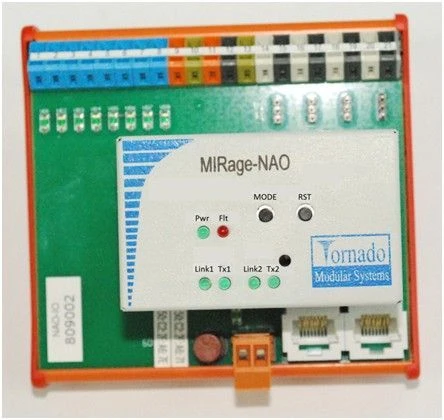

Analog Output and Discrete I/O Device MIRage-NAO for Signal Processing

The MIRage-NAO devices are devices for output of analogue signals and input-output of discrete signals. They have 4 analogue measurement (IR) output channels (AO) designed to generate analogue voltage or current signals. In addition to the analogue channels, the devices have 8 discrete input/output (DIO) channels with independent adjustment for the direction of binary signal transmission - the DIOs can be individually assigned to either input (DI) or output (DO). The signals are generated under the control of commands transmitted over a redundant 10/100 twisted pair Ethernet digital interface using the ModBus protocol. MIRage-NAO devices are designed to create automated process control systems (APCS) in various industries.
