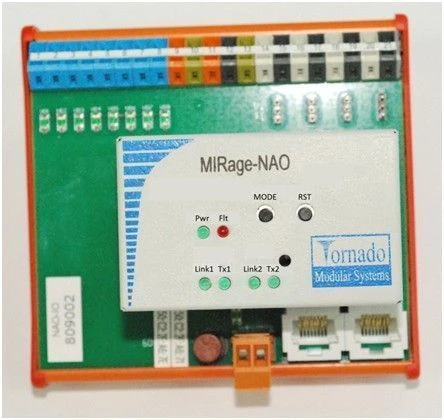

Analog Output and Discrete I/O Devices MIRage-NAO for Efficient Signal Management

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NAO devices are devices for output of analogue signals and input-output of discrete signals. They have 4 analogue measurement (IR) output (AO) channels designed to generate analogue voltage or current signals. In addition to the analogue channels, the devices have 8 discrete input/output (DIO) channels with independent adjustment for the direction of binary signal transmission - the DIOs can be individually assigned to either input (DI) or output (DO). The signals are generated under the control of commands transmitted over a redundant 10/100 twisted pair Ethernet digital interface using the ModBus protocol. MIRage-NAO devices are designed to create automated process control systems (APCS) in various industries. The MIRage-NAO devices use a central processor K1986BE92QI, produced in the Russian Federation.

Specifications

Base frequency of the processor

0.1

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 RJ-45; +24V power supply; spring terminals for signal cable

Form factor

din-35 rail mount

Power Type

+24V DC

Consumption current, mA

115

Data transfer rate

100

Type of control channels

Output unified current/voltage signals

Weight

450 year

Dimensions width

114 mm

Galvanic insulation

Group

Power consumption

3 W

Data exchange protocol

Modbus UDP/TCP Slave

Polling time

Number of analog control channels

4 pcs

Height

108 mm

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
