Board module with elements M192A01
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

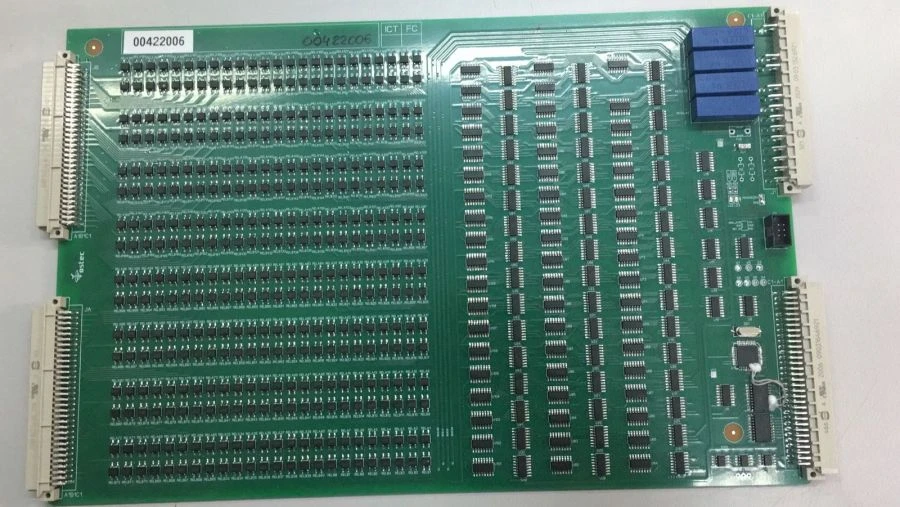

The module is a board with elements (electromagnetic and solid-state relays, passive elements, microcircuits, connectors) used as part of ULEI assembly control systems.
The board is used to switch electrical influences from the measuring modules of the system to the output channels for connection to the product under test (cable, harness, printed circuit board, electrical product, etc.). The board has 4 input channels that can be independently switched to 192 channels.
It is controlled by software via the ULEI series Sota testers software.
Power supply voltage is 24V DC. Output voltage from 0 to 100V, current up to 150mA, frequency up to 100kHz. It is not an independent device.
Weight 0.5kg, dimensions DxWxHxB 235x375x15mm.
The board is used to switch electrical influences from the measuring modules of the system to the output channels for connection to the product under test (cable, harness, printed circuit board, electrical product, etc.). The board has 4 input channels that can be independently switched to 192 channels.
It is controlled by software via the ULEI series Sota testers software.
Power supply voltage is 24V DC. Output voltage from 0 to 100V, current up to 150mA, frequency up to 100kHz. It is not an independent device.
Weight 0.5kg, dimensions DxWxHxB 235x375x15mm.
Specifications
Product width
375 mm
Product height
15 mm
Weight
0.5 kg
DC supply voltage
24 V
Output voltage
0...100 V
Current
0.15 A
Frequency
100
Product length
235 mm
