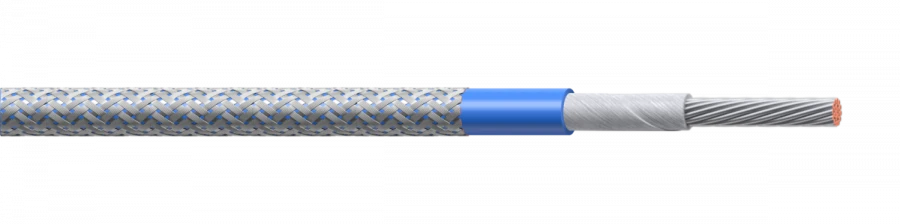

MGSHVE-OS assembly wires
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Available Models
Description
Wires with combined fibre or film, or polymer and polyvinylchloride insulation. Wires with combined fibre or film, polyvinyl chloride insulation are designed to work at operating AC voltage up to 380 V for cross sections of 0,08-0,14 mm2 and 1000 V frequency for cross sections of 0,2-1,5 mm2
frequency up to 10000 Hz and direct voltage up to 500 and 1500 V.
Service life is not less than 15 for combined fibre or film and polyvinylchloride insulation, at operation in the temperature range from minus 50 to +70°C..
frequency up to 10000 Hz and direct voltage up to 500 and 1500 V.
Service life is not less than 15 for combined fibre or film and polyvinylchloride insulation, at operation in the temperature range from minus 50 to +70°C..
Specifications
Core material
tinned copper stranded
Insulation material
two layers of silk and PVC plastic
External insulation
polyvinyl chloride plasticate
Screen
Braid made of tinned copper wires
Climatic version
In accordance with GOST 15150-69
Application
The wires are designed for operation at operating AC voltage up to 380 V for cross sections 0,08-0,14 mm2 and 1000 V for cross sections 0,2-1,5 mm2 of frequency up to 10 000 Hz and DC voltage up to 500 and 1500 V respectively.
Execution
Quality category - OS
Section
0.12...0.75 mm2
Number of cores
3
