Available for Import

MGSHV-OS assembly wires

On-Board Electrical Wires

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

MGSHV assembly wires

Description

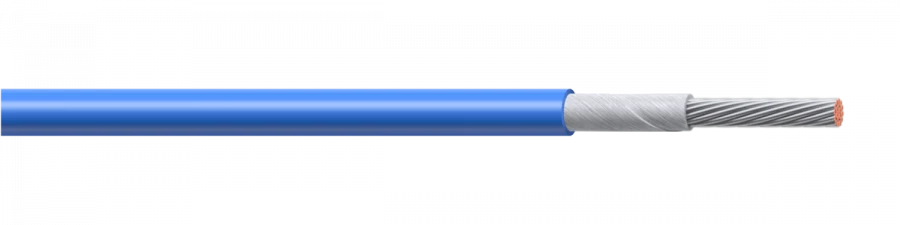

Wires with combined fibre or film, or polymer and polyvinylchloride insulation. Wires with combined fibre or film, polyvinyl chloride insulation are designed to work at operating AC voltage up to 380 V for cross sections of 0,08-0,14 mm2 and 1000 V frequency for cross sections of 0,2-1,5 mm2
frequency up to 10000 Hz and direct voltage up to 500 and 1500 V.
Service life is not less than 15 for combined fibre or film and polyvinylchloride insulation, at operation in the temperature range from minus 50 to +70°C..

Specifications

Core material tinned copper stranded

Insulation material two layers of silk and PVC plastic

External insulation PVC plasticate

Climatic version In accordance with GOST 15150-69

Application The wires are designed for operation at operating AC voltage up to 380 V for cross sections 0,08-0,14 mm2 and 1000 V for cross sections 0,2-1,5 mm2 of frequency up to 10 000 Hz and DC voltage up to 500 and 1500 V respectively.

Execution Quality category - OS

Section 0.12...1.5 mm2

Number of cores 1

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
