Available for Import

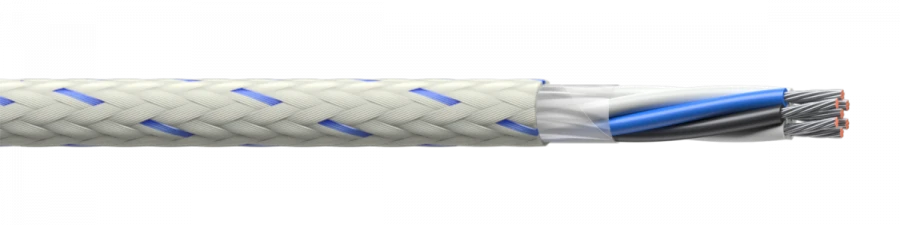

Cables on-board KPLM-OS

On-Board Electrical Wires

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

On-board KPLM cables Cables on-board KPLMU

Description

Cables multicore with polyethylene insulation braided, small-sized are designed for operation at temperatures from minus 60 to +85 °? and voltage up to 250 V AC frequency up to 5000 Hz or 350 V DC. Service life is not less than 15 years at operation in the temperature range from minus 60 to +85 ° C.

Specifications

Core material tinned copper stranded

Insulation material polyethylene

Cladding Capron sheath

Winding Polyamide film (wrapping with polyamide film and braiding with lavsan threads over single-pair cables of KPLEMU grades is not provided).

Protective cover braiding of lavsan yarns impregnated with organosilicon varnish

Section 0.12 to 1.50 mm²

Number of cores 4 to 52

Nominal voltage 250 ?

Climatic version In accordance with GOST 15150-69

Execution Quality category - OS

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
