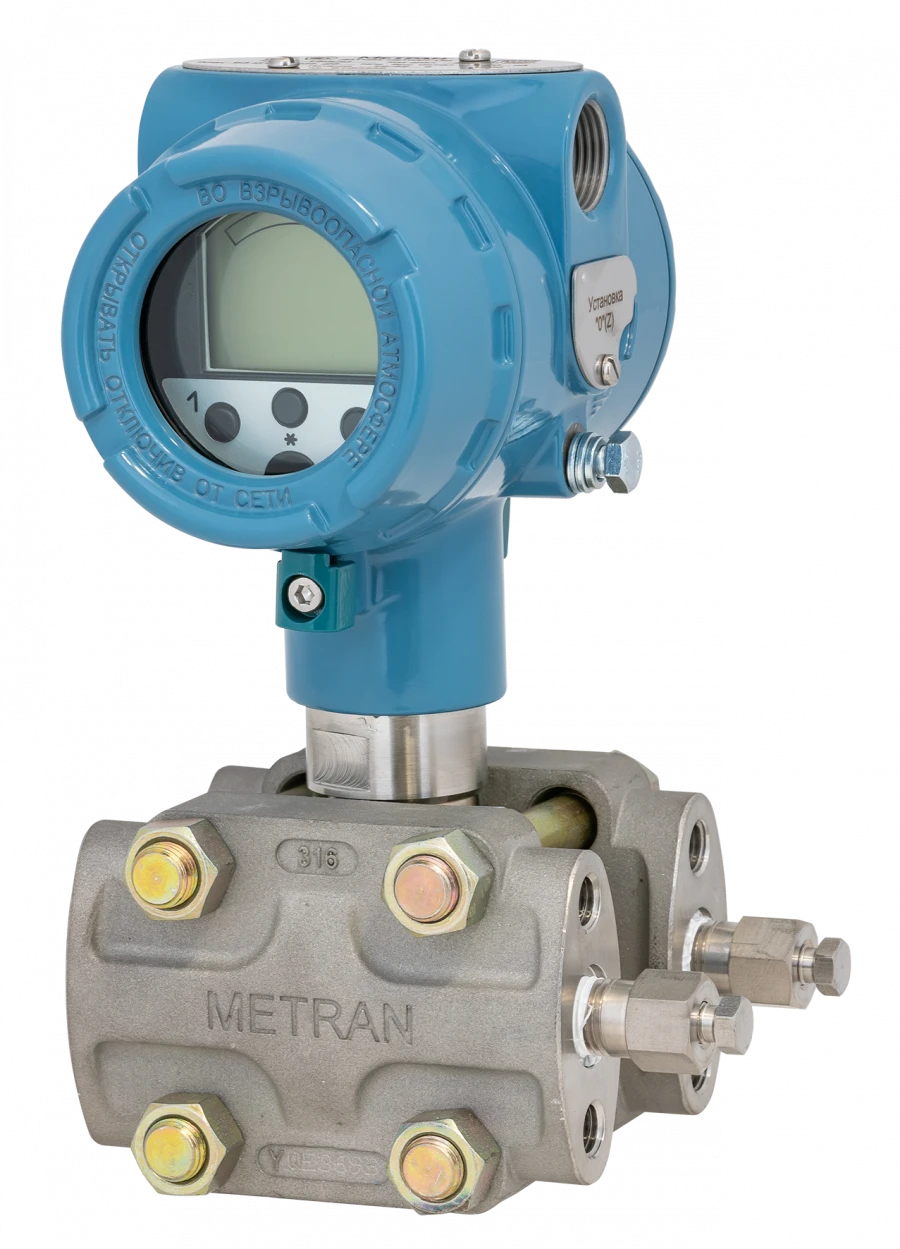

Metran-150 pressure sensors (model 150CD, version according to TU)

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for measuring the pressure difference of liquid, steam and gas. Measuring mechanism of sensors is based on capacitive measuring cell and works on the principle of differential condenser. The design of sensors allows to connect different types of flanges to one sensor module, to use sensors assembled with valve blocks of different design and (or) remote separating membranes, to use sensors as a part of flow measurement unit in complex with standard and special narrowing devices and averaging pressure tubes

Specifications

Execution General industrial, intrinsically safe, explosion-proof, combined

Dustproof IP66, IP68

Output signal Analog DC output signal 4-20 (0-5) mA and/or into digital output signal in NART protocol standard

Warranty period warranty storage period - 24 months from the date of sensor manufacturing. Warranty period of operation - 36 months from the date of their commissioning. Option WR5: warranty period of operation of the sensor - 5 years from the date of their commissioning

Differential pressure (DP), VPI 10 MPa

Range reconfiguration depth 1:100; 1:50

Basic reduced error 0.075; 0.1 (optional: 0.2; 0.5; 0.065) %

Climatic designs -40...85 °C

EMC IV version group according to GOST 32137; GOST R IEC 61326-1

Inspection interval 5 a

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
