Pressure transmitters ship pressure transmitters MPC

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

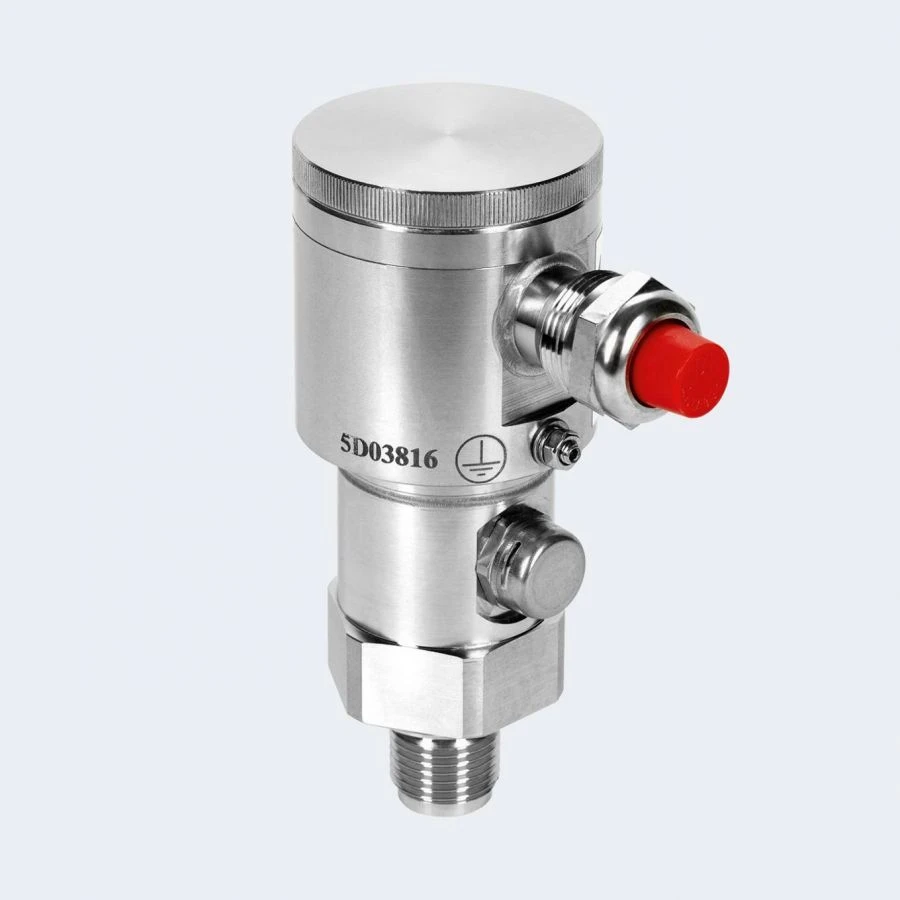

Ship pressure transducers PDK are designed for measurement and continuous conversion of excess, absolute and differential pressures of liquids and gases, as well as levels of liquids into a standardised DC output signal. Converters are designed for operation with secondary recording and displaying equipment in shipboard and ship conditions, as well as in systems of automatic control, regulation and management of technological processes in various industries.
Transducers are designed to perform measurements in various media, for example - distillate, fresh water, sea water, oil, petrol, paraffin, diesel fuel, heavy fuel with viscosity not more than 0,0035 m2/s (3500 cSt), fuel oil, ethyl alcohol, water vapour, air, air with sea water vapour, carbon dioxide, nitrogen, helium, oxygen, electrolytic hydrogen, acids, alkalis and aerosols, flue gases, etc..

Specifications

Basic reduced error 1.5 %

Overpressure (OD), upper limit of measurement 2.5 MPa

Absolute pressure (YES), upper measuring limit 2.5 MPa

Warranty period 1 a

Output signal, mA 4...20

Dustproof IP67/IP68

Execution Converters are produced in general industrial, explosion-proof version, and also in special version for nuclear power facilities.

Execution General industrial; explosion-proof

Dustproof ip55; ip65; ip67; ip68

Output signal, mA 4...20

Warranty period 1 a

Absolute pressure (YES), upper measuring limit 100 MPa

Overpressure (OD), upper limit of measurement 100 MPa

Differential pressure (DP), upper measuring limit 3 MPa

Range reconfiguration depth Not reconfigurable

Basic reduced error 15 %

Climatic designs ohm placement categories 1;2;3;4;5; atmosphere types i; ii; iii; iv

Alarm devices (optional) pressure switch

Inspection interval 3 a

Hydrostatic pressure (HP), upper measuring limit 200

Hydrostatic pressure (DH) (submersible) 120...200

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
