DM5007A-DD

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

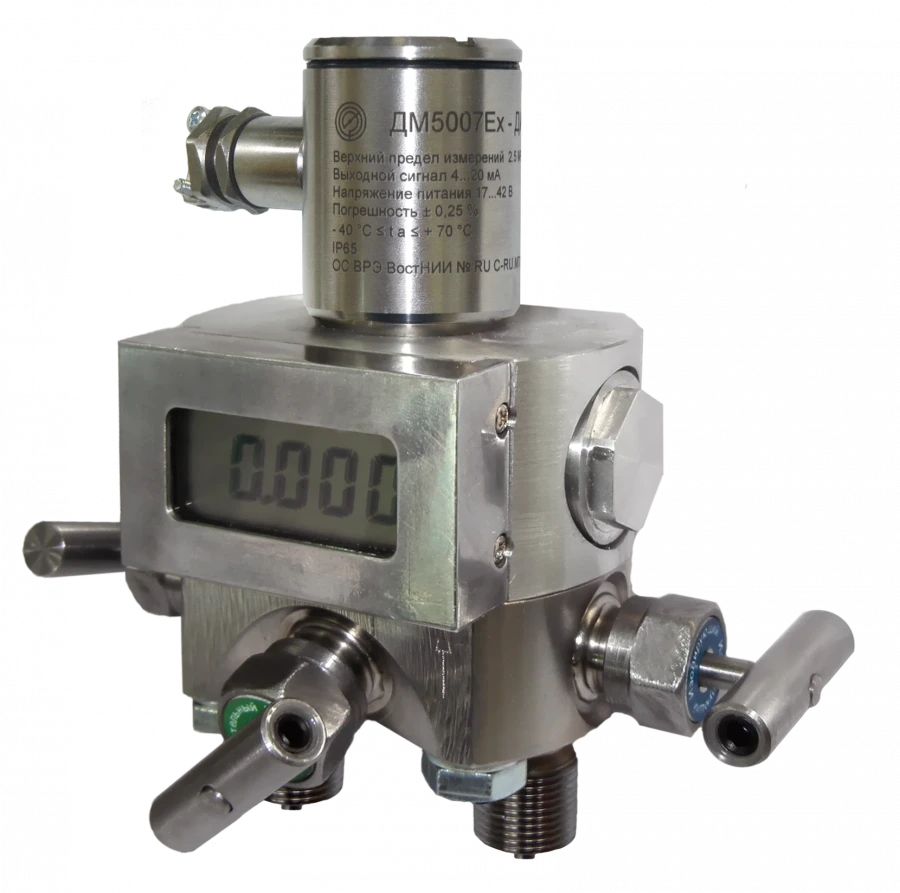

DM5007Eh-DD and DM5007AEh-DD type sensors are designed for measurement of pressure difference and conversion into unified current signal of direct current (4-20) mA. The sensors are structurally connected with a three-way valve. The devices meet the requirements of electromagnetic compatibility group II (A) according to GOST 29254-91.

Specifications

Inspection interval 2 a

Warranty period 3 a

Load resistance 0.2 to 1000 ohms

Ambient temperature -40 to +70

Average service life 8 years

Degree of protection IP65

Power consumption max 0.85v-a

Material of parts diaphragm: titanium connection: stainless steel

Basic error tolerance limit ±0.25%; ±0.5%

Mark ДМ5007А-ДД

Output signal DC current: 4-20mA (two-wire communication line)

Power supply voltage 17-42

Vibration protection up to 100 Hz with amplitude up to 2;5 mm

Fitting threads M20*1;5-8g

Housing material stainless steel

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
